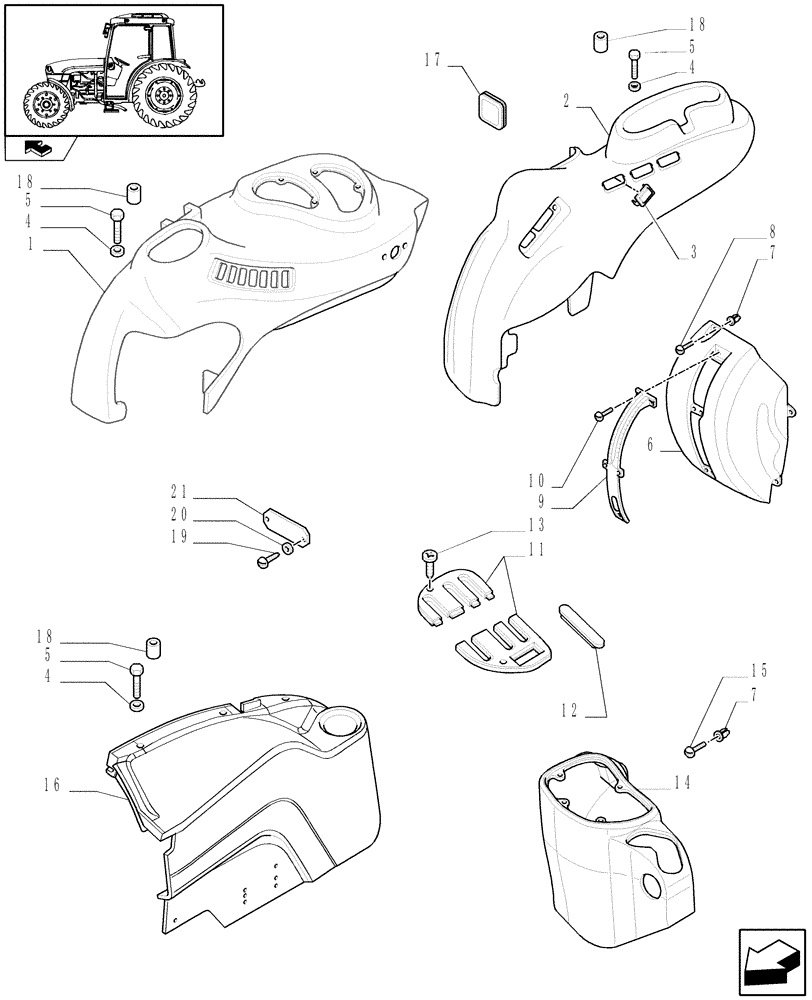

Запчасти Case IH FARMALL 65C (1.92.88/01[02]) - COVERINGS - W/CAB (10) - OPERATORS PLATFORM/CAB

1

87623610

COVER

RH

1шт.

Electronic Lift

1шт.

1

87623614

COVER

RH, 75C

1шт.

HPL with Electronic Control, VAR.330404-331404-332404-333404

1шт.

2

87623596

COVER

RH

1шт.

Lights for RH Drive Markets - NA, VAR.332715

1шт.

3

5166218

PLUG,Switch

1шт.

4

12625221

WASHER,8.15mm ID x 20mm OD x 1mm Thk

4шт.

5

86507088

SCREW,Phillips Drive, Pan HD, M8 x 30mm, Cl 4.8

4шт.

5

14780711

SCREW,Cross Rec Cheese Hd, M8 x 35mm, Cl 5.8

4шт.

6

5180576

PADDING

1шт.

7

14115780

BLOCK

7шт.

8

5182260

SELF-TAP SCREW,M5 x 16mm L

4шт.

9

5180577

BEZEL

1шт.

9

5180578

BEZEL

1шт.

HPL with Electronic Draft Control, VAR.330127-331127-332127-332127-333127

1шт.

10

15958704

SELF-TAP SCREW,Pan HD, M5 x 12mm

5шт.

10

13271814

SCREW,Pozidriv Pan Hd, M4 x 8mm

4шт.

HPL with Electronic Draft Control, VAR.330127-331127-332127-332127-333127

1шт.

11

5186621

COVER

1шт.

12

5182030

PLUG

Plug 122MM

2шт.

12

5181959

PLUG

Plug 153MM

1шт.

13

13271814

SCREW,Pozidriv Pan Hd, M4 x 8mm

4шт.

14

5199940

REAR FENDER

1шт.

15

15917307

SELF-TAP SCREW,Cross Flat Hd, M4.2 x 32

3шт.

16

87623595

COVER

LH

1шт.

17

82004989

PLUG

1шт.

18

87726554

SPACER

4шт.

19

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

20

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

21

87337057

BRACKET

1шт.

With 2/3 Rear Remotes With EDC, VAR.331108-333108-331195

1шт.
