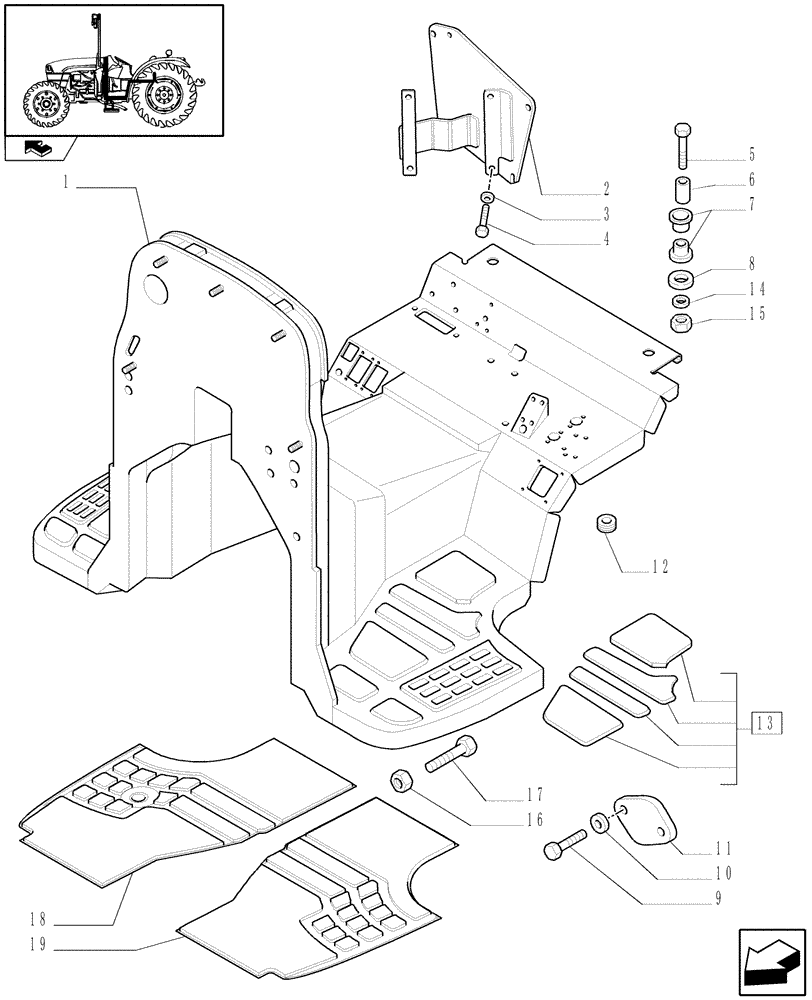

Запчасти Case IH FARMALL 65C (1.92.87[01]) - MUDGUARDS AND FOOTBOARDS - L/CAB (10) - OPERATORS PLATFORM/CAB

1

87541705

RIGID PLATFORM

1шт.

2

87396175

LOCKING TAB

1шт.

3

10571571

LOCK WASHER,M6

4шт.

4

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

5

15541424

SCREW,Hex, M12 x 1.25 x 80mm, Cl 8.8

2шт.

6

5168604

SPACER,12.25mm ID x 17mm OD x 40mm L

2шт.

7

5187531

RUBBER WASHER,16.5mm ID x 60mm OD x 20mm Thk

4шт.

8

5177774

SPACER

D=12

2шт.

9

13276114

SCREW,Pozidriv Pan Hd, M6 x 14mm

2шт.

10

10571574

LOCK WASHER

D=6

2шт.

11

5191269

COVER PLATE

1шт.

12

10403680

INSULATING RING,28mm ID x 46mm OD x 11mm Thk

28 x 1.5

1шт.

13

47123111

FOOT BOARD

ASSY, RH

1шт.

13

47123102

FOOT BOARD

ASSY, LH

1шт.

14

11190879

BELLEVILLE WASHER,M12 Bolt Size x 30mm OD

4шт.

15

16101511

NUT,M12 x 1.25, Cl 8

2шт.

16

12574221

NUT,M6 x 1, Cl 10

2шт.

17

15541524

SCREW,Hex, M12 x 1.25 x 90mm, Cl 8.8

2шт.

18

5188928

MAT

1шт.

Noise Reduction Kit for Suspended Platform, VAR.333101

1шт.

19

5188898

MAT

1шт.

Noise Reduction Kit for Suspended Platform, VAR.333101

1шт.
