(1.92.85/03) - VINYL SEAT WITH RETRACTABLE BELTS AND SAFETY SWITCH - L/CAB (VAR.330157)

Запчасти Case IH FARMALL 65C (1.92.85/03) - VINYL SEAT WITH RETRACTABLE BELTS AND SAFETY SWITCH - L/CAB (VAR.330157) (10) - OPERATORS PLATFORM/CAB

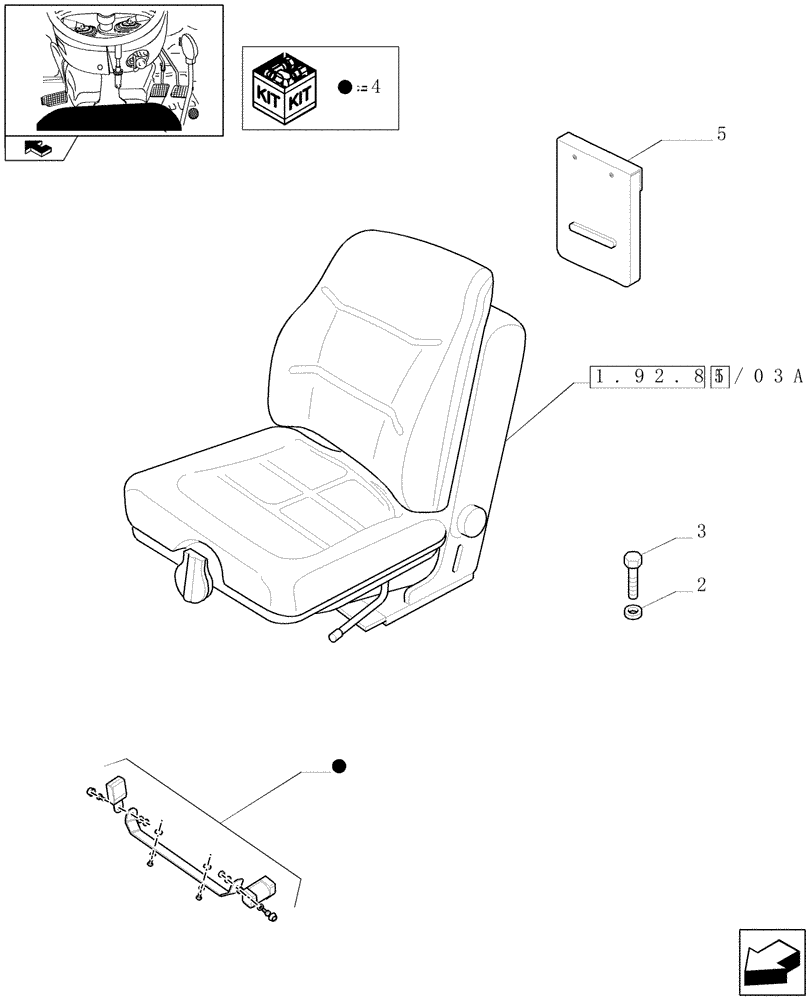

Схема запчастей Case IH FARMALL 65C - (1.92.85/03) - VINYL SEAT WITH RETRACTABLE BELTS AND SAFETY SWITCH - L/CAB (VAR.330157) (10) - OPERATORS PLATFORM/CAB
3
2
1
1.92.85/03a
home
4
29
29
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87730613

DRIVER SEAT

ASSY

1шт.

2

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

8x16x1.9

4шт.

3

5183645

SCREW,Hex, M8 x 22mm, Cl 8.8

M8x1.25x22

4шт.

4

87646060

KIT

1шт.

5

84281623

BRIEF CASE

, Start Serial: D6510

1шт.

Выбрано товаров: 5
