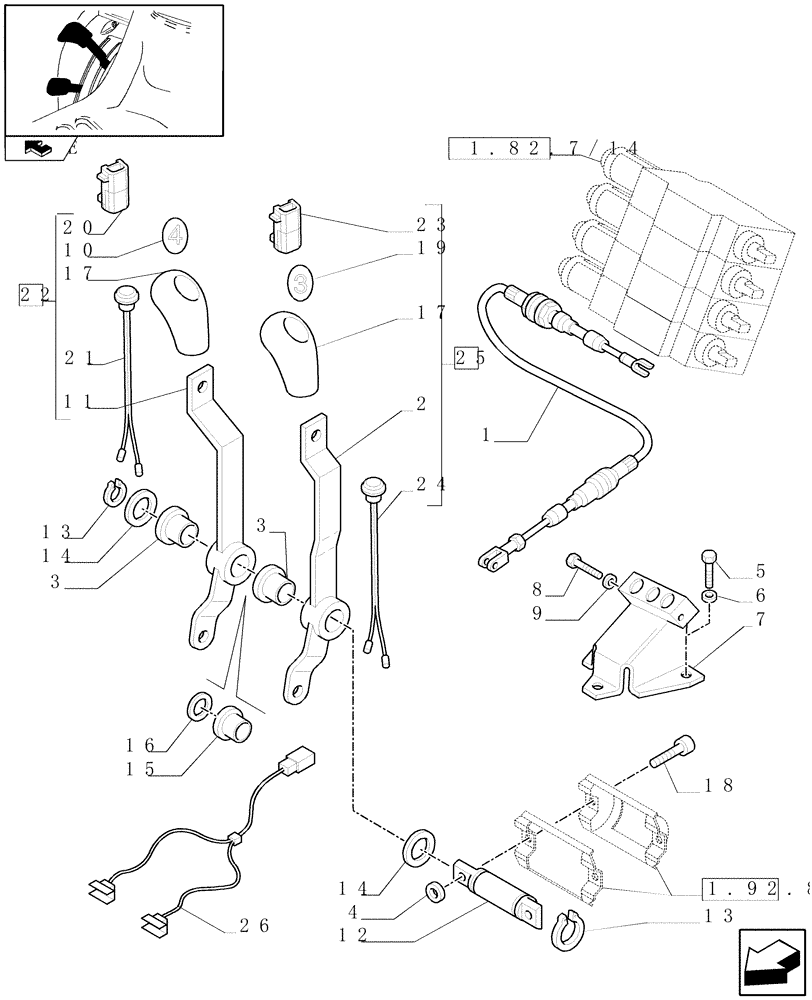

Запчасти Case IH FARMALL 65C (1.92.82/13) - 4 REAR REMOTE VALVES FOR EDC W/HYDRAULIC DIVIDER - LEVERS (VAR.331166) (10) - OPERATORS PLATFORM/CAB

1

5199209

CABLE,900mm L

2шт.

2

87707812

LEVER

1st-3rd Distr.

1шт.

3

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

21 x 27 x 22

2шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

5

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

6

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

3шт.

7

47127691

SUPPORT

1шт.

8

14301624

HEX SOC SCREW,M5 x 70mm, Cl 8.8

1шт.

9

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

1шт.

10

47057202

EMBLEM

1шт.

11

84121654

LEVER

2nd-4th Distr.

1шт.

12

47127819

PIN

1шт.

13

11066974

SNAP RING,M21, Ext

2шт.

14

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

35 x 21 x 2

2шт.

15

5154839

SPACER,21mm ID x 35mm OD x 22mm L

21 x 35 x 22

2шт.

16

5154840

SHIM,21mm ID x 35mm OD x 2mm Thk

21 x 35 x 2

1шт.

17

84121634

KNOB

2шт.

18

5134736

SCREW,M8 x 22mm, Cl 8.8

M8 x 20

2шт.

19

47057201

IDEOGRAM

2шт.

20

12483580

MULTIPOLE CONNECTOR

1шт.

21

5192432

SWITCH

1шт.

22

84122697

LEVER

1шт.

23

12484680

MULTIPOLE CONNECTOR,Female, 2 Pin

1шт.

24

84123781

SWITCH

1шт.

25

84122696

LEVER

1шт.

26

84130690

ELECTRIC CABLE

1шт.
