Запчасти Case IH FARMALL 65C (1.92.82/03) - CONTROL LEVERS FOR 2 REAR REMOTE VALVE FOR MID-MOUNT AND MDC - LEVER AND KNOB (VAR.331721) (10) - OPERATORS PLATFORM/CAB

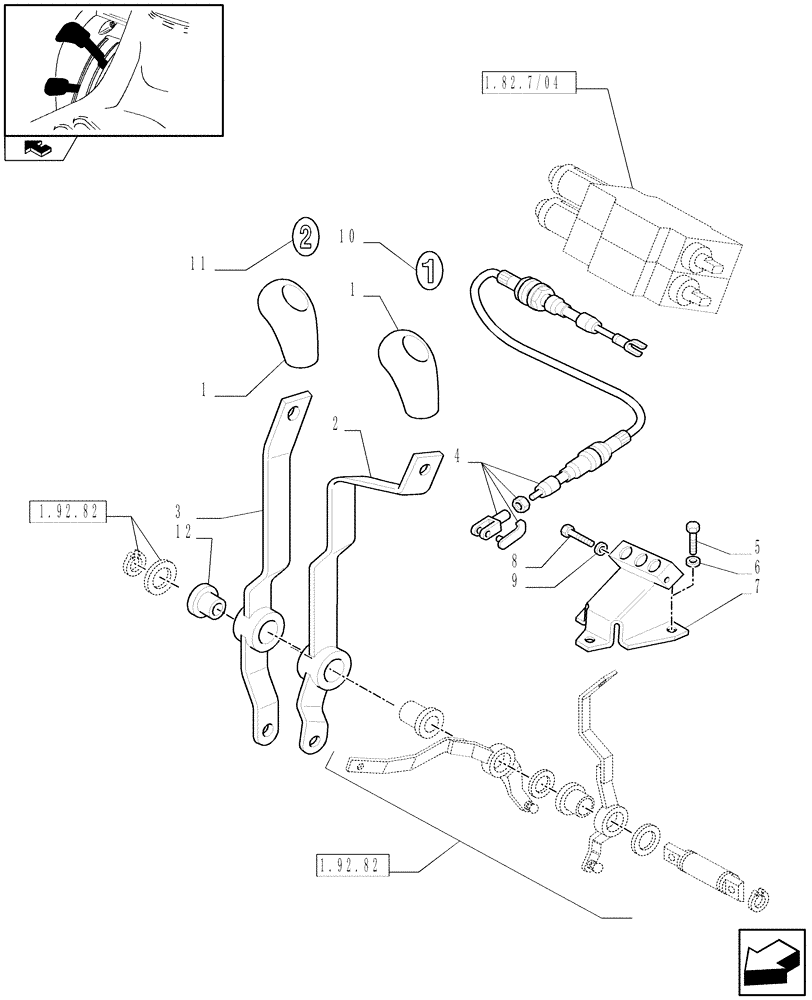

Схема запчастей Case IH FARMALL 65C - (1.92.82/03) - CONTROL LEVERS FOR 2 REAR REMOTE VALVE FOR MID-MOUNT AND MDC - LEVER AND KNOB (VAR.331721) (10) - OPERATORS PLATFORM/CAB
1.82.7/04
1.92.82
1.92.82
12
1
2
9
4
8
6
3
5
11
1
10
7
home

Артикул

Название

Примечание

Количество

1

47056482

KNOB

Green

1шт.

2

47127677

LEVER

1st-4th Distr.

1шт.

3

47124727

LEVER

3rd Distr.

1шт.

4

5199209

CABLE,900mm L

2шт.

5

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

6

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

3шт.

7

47127691

SUPPORT

1шт.

8

14301624

HEX SOC SCREW,M5 x 70mm, Cl 8.8

1шт.

9

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

1шт.

10

47057199

IDEOGRAM

1шт.

11

47057200

IDEOGRAM

1шт.

12

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

21 x 27 x 22

1шт.

Выбрано товаров: 12
