Запчасти Case IH FARMALL 65C (1.92.76[01]) - LIGHTING COMPONENTS - W/CAB (10) - OPERATORS PLATFORM/CAB

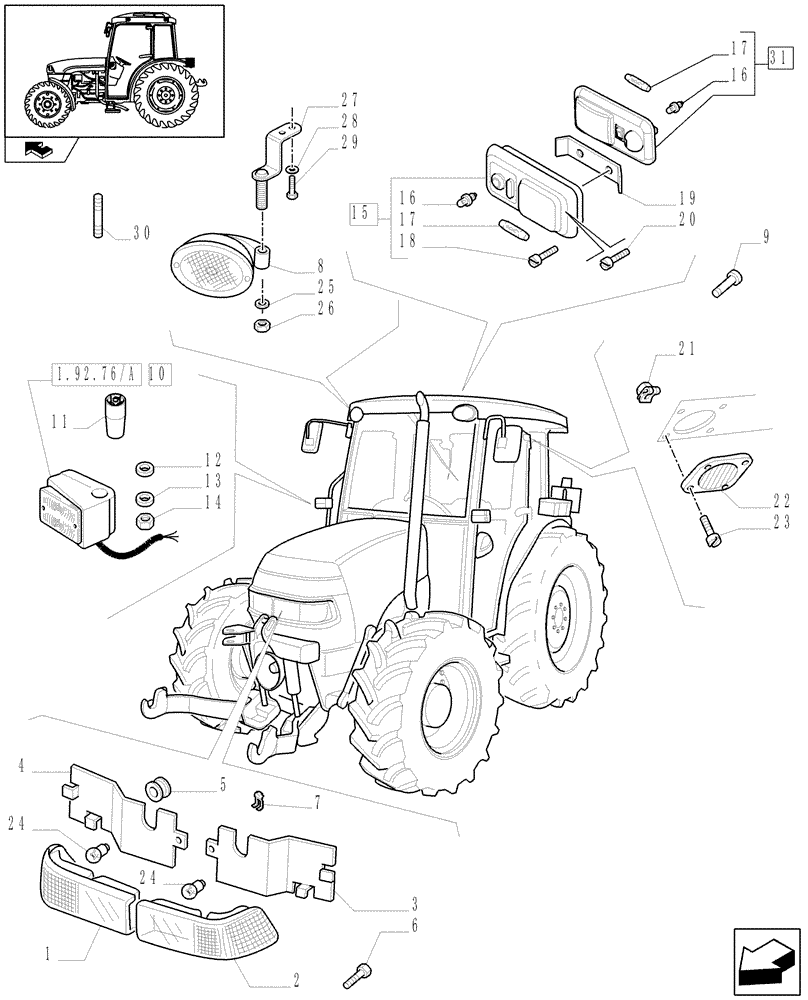

Схема запчастей Case IH FARMALL 65C - (1.92.76[01]) - LIGHTING COMPONENTS - W/CAB (10) - OPERATORS PLATFORM/CAB
12
22
18
11
7
4
25
5
2
29
17
24
27
16
21
15
13
3
23
16
17
8
28
14
31
6
19
1.92.76/a
home
24
20
9
1
26
10
30

Артикул

Название

Примечание

Количество

1

44995026

HEADLAMP

LH for RH Dip, Incl. 24

1шт.

1

232450A2

HEADLIGHT,12V

RH, Incl. 24

1шт.

Lights for LH Drive Markets, VAR.330714-331714

1шт.

1

232452A2

HEADLIGHT

RH, Incl.24

1шт.

Lights for RH Drive Markets - NA, VAR.332715

1шт.

2

44995027

HEADLAMP

RH for RH Dip, Incl. 24

1шт.

2

232451A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

LH, Incl. 24

1шт.

Lights for LH Drive Markets, VAR.330714-331714

1шт.

2

232453A2

HEADLIGHT

LH, Incl.24

1шт.

Lights for RH Drive Markets - NA, VAR.332715

1шт.

3

47127433

BRACKET

LH

1шт.

4

47127434

PLATE

RH

1шт.

5

47127368

GROMMET

2шт.

6

10559807

SELF-TAP SCREW,Hex Flg, M6.3 x 16mm

2шт.

6

10559907

SELF-TAP SCREW,Hex Flg, M6.3 x 19mm

6шт.

7

44995046

CLIP

6шт.

8

47057120

HEADLAMP

LH

2шт.

8

47057125

HEADLAMP

RH

2шт.

9

5158445

PLUG

D=6

2шт.

10

82009122

FRONT LAMP,12V, 21W, Amber/Clear

RH

1шт.

10

82009121

FRONT LAMP,12V, 21W, Amber/Clear

LH

1шт.

11

47135267

ELEC CONNECTOR,Female, 4 Cavities

2шт.

12

10399580

GROMMET,8mm ID x 14mm GRV ø x 20mm OD x 8mm Thk

8 x 2.5

2шт.

13

5155698

GASKET

4шт.

14

14084114

FLANGE NUT,M5 x .8, Flg

4шт.

15

5141635

CEILING LAMP

ASSY, Serial Range: -C6945

1шт.

16

14144190

BULB,W5W, 12V, 5W

12V-5W

1шт.

17

10863090

BULB,C5W, 12V, 5W

1шт.

18

15902604

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 9.50mm

2шт.

19

44911604

BRACKET

1шт.

20

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

3шт.

21

5154844

BRACKET

8шт.

22

87319889

GRILLE

, Serial Range: -C6886

2шт.

22

82014733

GRILLE

, Start Serial: D6886

2шт.

23

15902807

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 22mm

8шт.

24

87283179

BULB,H4, 12V, 60/55W

60/55W

2шт.

24

323093A1

BULB

50W

2шт.

25

12642001

WASHER,8.15mm ID x 25mm OD x 1.5mm Thk

4шт.

26

16104121

NUT,M8 x 1.25, Cl 10

4шт.

27

87304489

BRACKET

2шт.

28

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

4шт.

29

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

30

13517630

STUD

M8 x 12 x 50

2шт.

31

84195893

CEILING LAMP

ASSY, Start Serial: D6945

1шт.

Выбрано товаров: 44
