Запчасти Case IH FARMALL 65C (1.92.75/01) - SMV EMBLEM WITH SUPPORT & 7-PIN TRAILER CONNECTOR - NA - ADDITIONAL POWER POINTS (VAR.332960) (10) - OPERATORS PLATFORM/CAB

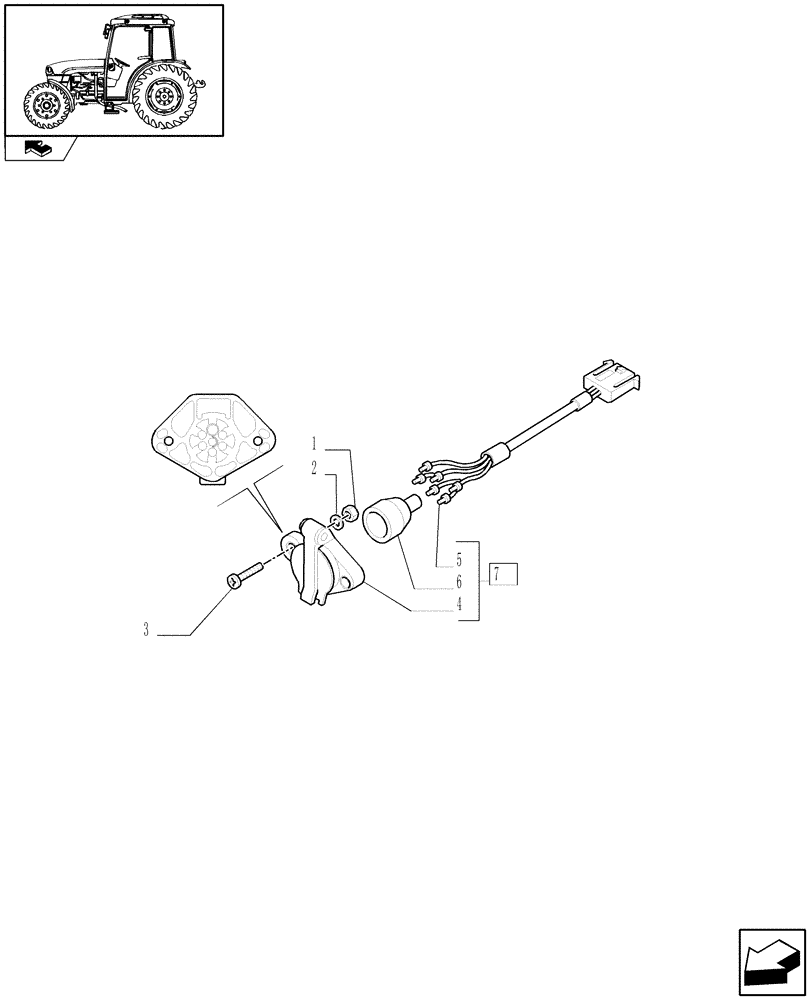

Схема запчастей Case IH FARMALL 65C - (1.92.75/01) - SMV EMBLEM WITH SUPPORT & 7-PIN TRAILER CONNECTOR - NA - ADDITIONAL POWER POINTS (VAR.332960) (10) - OPERATORS PLATFORM/CAB
3
4
5
6
home
2
1
7

Артикул

Название

Примечание

Количество

1

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

3

86585703

SCREW,Phillips Drive, Pan HD, M8 x 20mm, Cl 4.8

2шт.

4

5186012

SOCKET/RECEPTACLE

7 Pole

1шт.

5

5199466

WIRE HARNESS

1шт.

6

5186014

CAP

1шт.

7

5199465

WIRE HARNESS

Assy

1шт.

Выбрано товаров: 7
