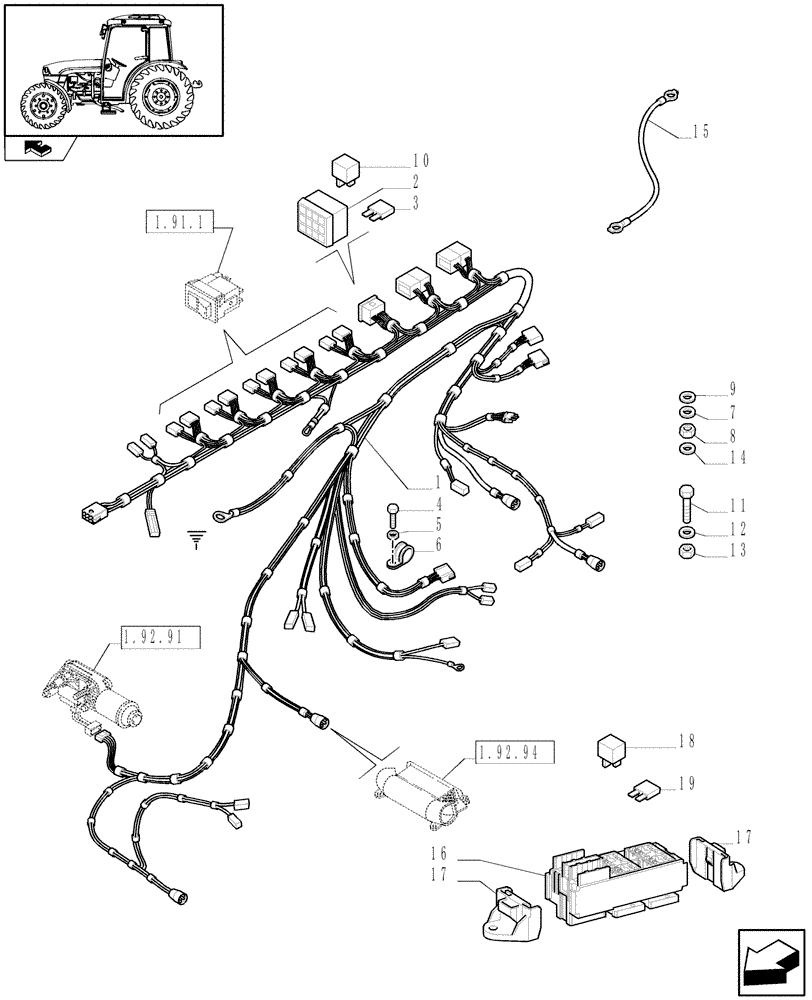

Запчасти Case IH FARMALL 65C (1.92.75[04]) - ELECTRIC CONTROLS - W/CAB (10) - OPERATORS PLATFORM/CAB

1

87368895

CABLE

Cab Harness

1шт.

2

47134166

FUSE BOX

1шт.

3

87693742

FUSE,5A

1шт.

4

13279211

SCREW,Pozidriv Pan Hd, M8 x 16mm, Cl 5.8, Full Thd

4шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

6

10450090

CLAMP,8mm, Coat, 9mm Bolt Hole, P Type

2шт.

7

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

6 x 16

1шт.

8

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

9

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.

10

5155317

RELAY,12V, 30A

4шт.

11

13273921

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

1шт.

12

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

3шт.

13

15896414

NUT,M5, Cl 8

2шт.

14

10615774

WASHER

D=10

2шт.

15

87709755

TERMINAL

1шт.

16

87588032

FUSE BOX

1шт.

17

87588035

BRACKET

2шт.

18

47127781

RELAY,12V, 20A, Micro, N.O.

12V-20A

5шт.

18

87604032

RELAY,12V, 30A, Micro

30A

1шт.

19

87522595

FUSE,7.5A, Mini, Brown

7.5A

3шт.

19

87522597

FUSE,10A, Mini, Red

10A

1шт.

19

87524877

FUSE,15A, Mini, Blue

15A

4шт.

19

10402190

FUSE,30A, Mini

30A

1шт.
