Запчасти Case IH FARMALL 65C (1.92.75[01]) - ELECTRIC CONTROLS (10) - OPERATORS PLATFORM/CAB

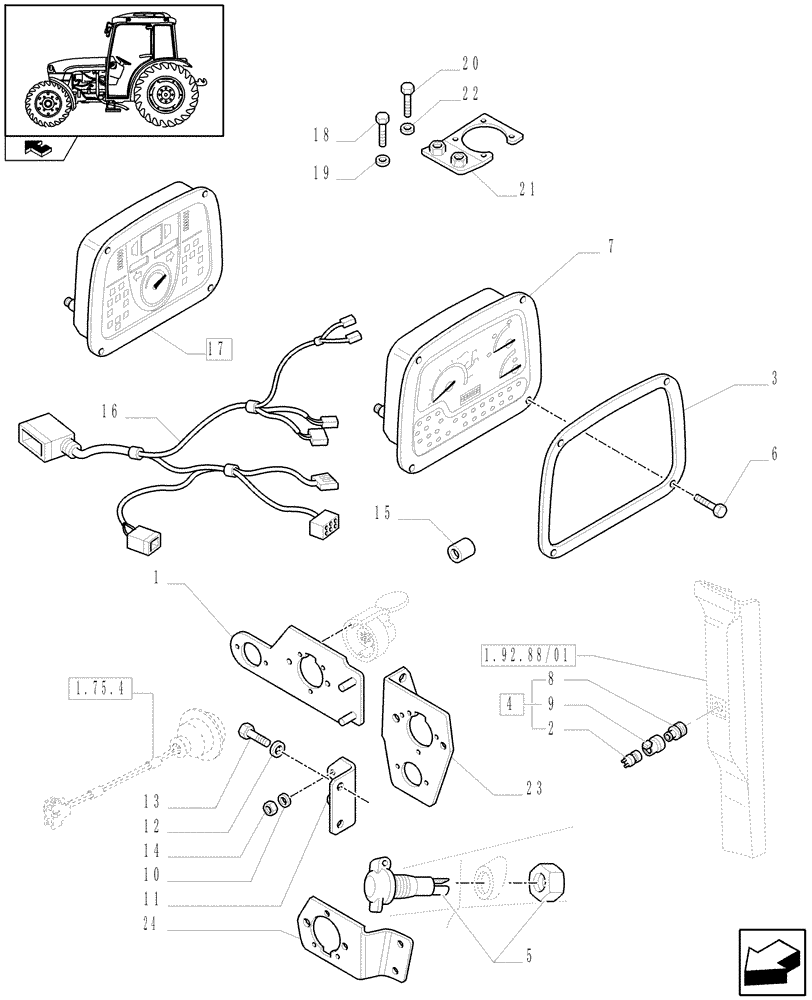

Схема запчастей Case IH FARMALL 65C - (1.92.75[01]) - ELECTRIC CONTROLS (10) - OPERATORS PLATFORM/CAB
22
9
14
24
23
12
11
6
8
13
15
20
19
2
10
1
7
18
4
1.75.4
1.92.88/01
home
21
17
5
3
16

Артикул

Название

Примечание

Количество

1

5194519

BRACKET

L/CAB

1шт.

2

5148131

HOUSING

1шт.

3

5175371

GASKET,3mm Thk

, Serial Range: -C7201

1шт.

3

84585101

GASKET

, Start Serial: D7201

1шт.

4

5148077

CIGARETTE LIGHTER

W/CAB

1шт.

5

84191453

SOCKET,12/24V, 20A

2шт.

6

5180363

HEX SOC SCREW,M4 x 0.7 x 25mm, Cl 8.8

, Serial Range: -C7201

4шт.

6

14303487

, Start Serial: D7201

HEX SOC SCREW

4шт.

7

87371899

INSTRUMENT CLUSTER

1шт.

8

5148133

CIGARETTE LIGHTER

1шт.

9

5148132

LAMP SOCKET

1шт.

10

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

L/CAB

2шт.

11

5183206

SUPPORT

L/CAB

1шт.

12

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

13

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

14

15896211

NUT,M6, Cl 8

2шт.

15

15811787

COVER

17 x 10.5, L/CAB

1шт.

16

87368623

CABLE

1шт.

Analogic/Digital Instrument with Clock for MDC, VAR.330737-335737

1шт.

17

87371896

INSTRUMENT CLUSTER

, Serial Range: -C6255

1шт.

Analogic/Digital Instrument with Clock, VAR.330737-331737-335737-336737

1шт.

17

84126760

INSTRUMENT CLUSTER

, Serial Range: D6255-C6388

1шт.

Analogic/Digital Instrument with Clock, VAR.330737-331737-335737-336737

1шт.

17

84185773

INSTRUMENT CLUSTER

, Serial Range: D6388-C6768

1шт.

Analogic/Digital Instrument with Clock, VAR.330737-331737-335737-336737

1шт.

17

84384958

INSTRUMENT CLUSTER

, Start Serial: D6768

1шт.

Analogic/Digital Instrument with Clock, VAR.330737-331737-335737-336737

1шт.

18

10977724

BOLT,M5 x 14.00mm, Cl 8.8, DAC

2шт.

19

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

20

15901404

SELF-TAP SCREW,Cross Pan Hd, M2.9 x 9.50mm

2шт.

21

87673899

BRACKET

1шт.

Analogic/Digital Instrument with Clock, VAR.330737-331737-335737-336737

1шт.

22

86639310

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

2шт.

23

5174166

SUPPORT

L/CAB

1шт.

Suspended Platform with Noise Reduction Kit, VAR.333101

1шт.

24

5197362

BRACKET

W/CAB

1шт.

Выбрано товаров: 36
