(1.92.74[01]) - ELECTRIC CONTROLS

Запчасти Case IH FARMALL 65C (1.92.74[01]) - ELECTRIC CONTROLS (10) - OPERATORS PLATFORM/CAB

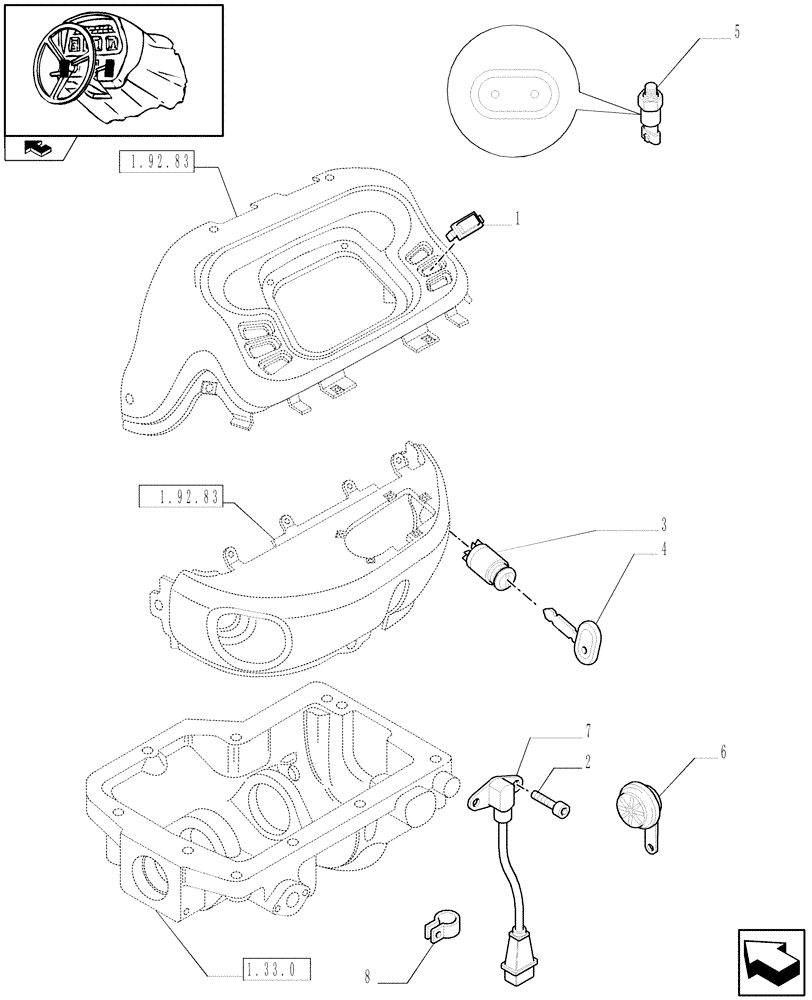

Схема запчастей Case IH FARMALL 65C - (1.92.74[01]) - ELECTRIC CONTROLS (10) - OPERATORS PLATFORM/CAB
3
1.92.83
1.33.0
1.92.83
6
2
home
5
4
7
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5166218

PLUG,Switch

1шт.

2

10977524

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

4шт.

3

87556869

IGNITION SWITCH

50A

1шт.

Tiltable and Telescopic Steering Column for Hydraulic Trasmission, VAR.331644-337644

1шт.

4

87312356

IGNITION KEY

1шт.

5

5190018

PRESSURE SWITCH

1шт.

6

47132132

HORN

1шт.

Analogic/Digital Instrument with Clock, VAR.330737-331737-335737-336737

1шт.

7

87564764

SENSOR

2шт.

Analogic/Digital Instrument with Clock, VAR.330737-331737-335737-336737

1шт.

8

10450090

CLAMP,8mm, Coat, 9mm Bolt Hole, P Type

2шт.

Analogic/Digital Instrument with Clock, VAR.330737-331737-335737-336737

1шт.
