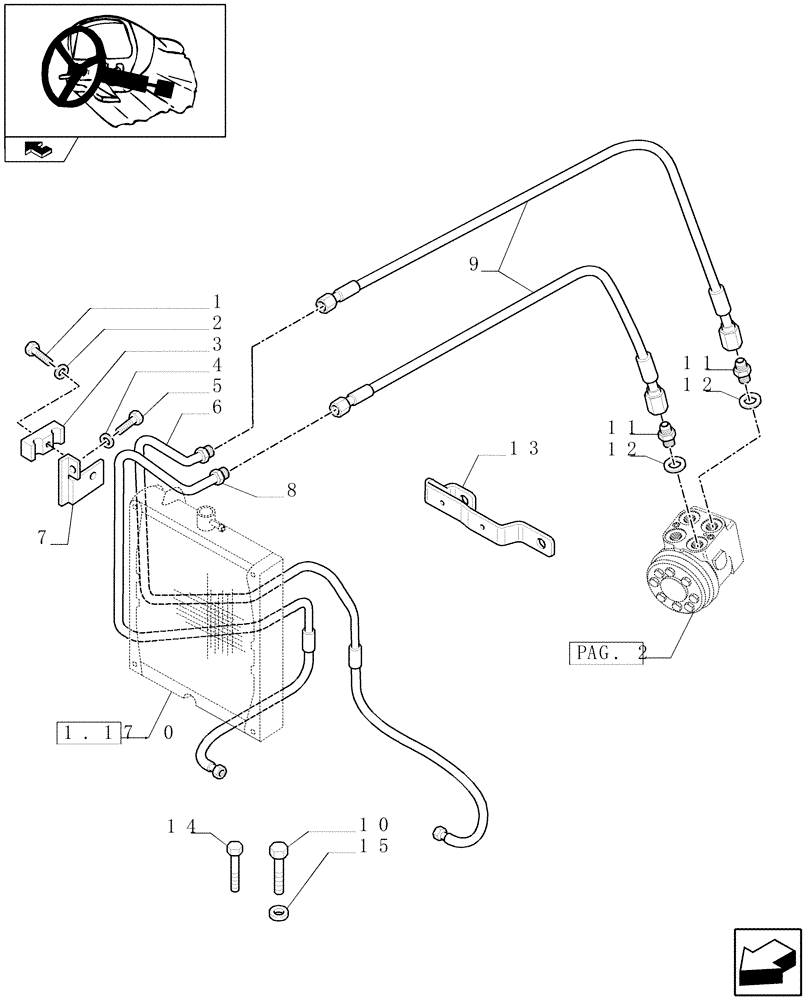

Запчасти Case IH FARMALL 65C (1.92.63[04]) - POWER STEERING PIPES (10) - OPERATORS PLATFORM/CAB

1

10903024

BOLT,Hex, M6 x 35mm, Cl 8.8

2шт.

2

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

3

87325889

BRACKET

2шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

5

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

6

87676994

RIGID TUBE

LH

1шт.

7

87572784

BRACKET

1шт.

8

87676996

RIGID TUBE

RH

1шт.

9

87679159

HOSE

L=460

2шт.

9

87679158

RIGID TUBE

L=660

2шт.

4WD Standard Steering for front HPL Axle Mounted, VAR.337400-339400-338402-339402

1шт.

10

15973721

SCREW,Hex, M12 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

11

5174421

HYD CONNECTOR

2шт.

12

5170555

WASHER

2шт.

13

87676998

BRACKET

1шт.

14

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

1шт.

15

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.
