Запчасти Case IH FARMALL 65C (1.92.63[03]) - POWER STEERING PIPES (10) - OPERATORS PLATFORM/CAB

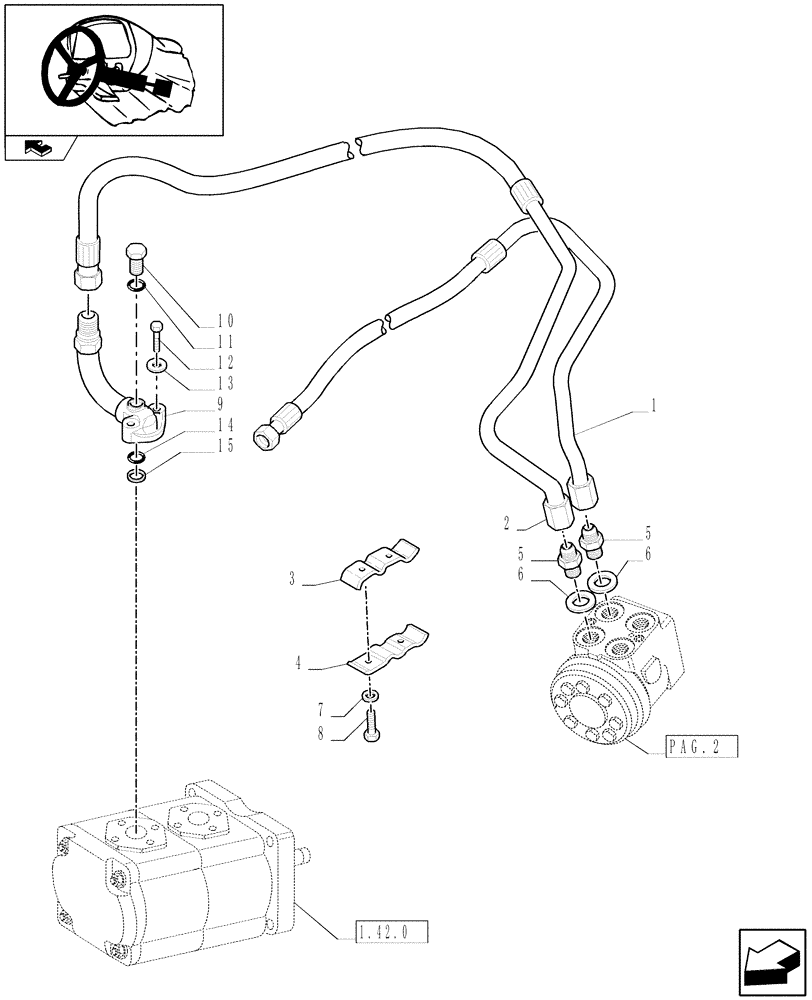

Схема запчастей Case IH FARMALL 65C - (1.92.63[03]) - POWER STEERING PIPES (10) - OPERATORS PLATFORM/CAB
1
4
9
10
8
5
6
13
11
1.42.0
pag.2
6
home
15
14
5
3
12
7
2

Артикул

Название

Примечание

Количество

1

87389452

HYD TUBE,12.7 mm ID x 19.7 mm OD x 488 mm L

In

1шт.

2

87389462

HYD TUBE,12.7 mm ID x 523 mm L

Out

1шт.

3

87558474

RETAINER COLLAR,2x6.5mm ID

1шт.

4

87558463

RETAINER COLLAR,2x6mm ID x 4mm Thk

1шт.

5

5158807

HYD CONNECTOR

7/8"-14 x 1/2" Gas

2шт.

6

5170555

WASHER

1/2"

4шт.

7

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

8

10902524

SCREW,Hex, M6 x 22mm, Cl 8.8

2шт.

9

87392820

RIGID TUBE,16 mm OD x 80, 65.8 mm L

1шт.

10

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

11

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

12

14305521

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

2шт.

13

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

14

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

15

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

D=24

1шт.

Выбрано товаров: 15
