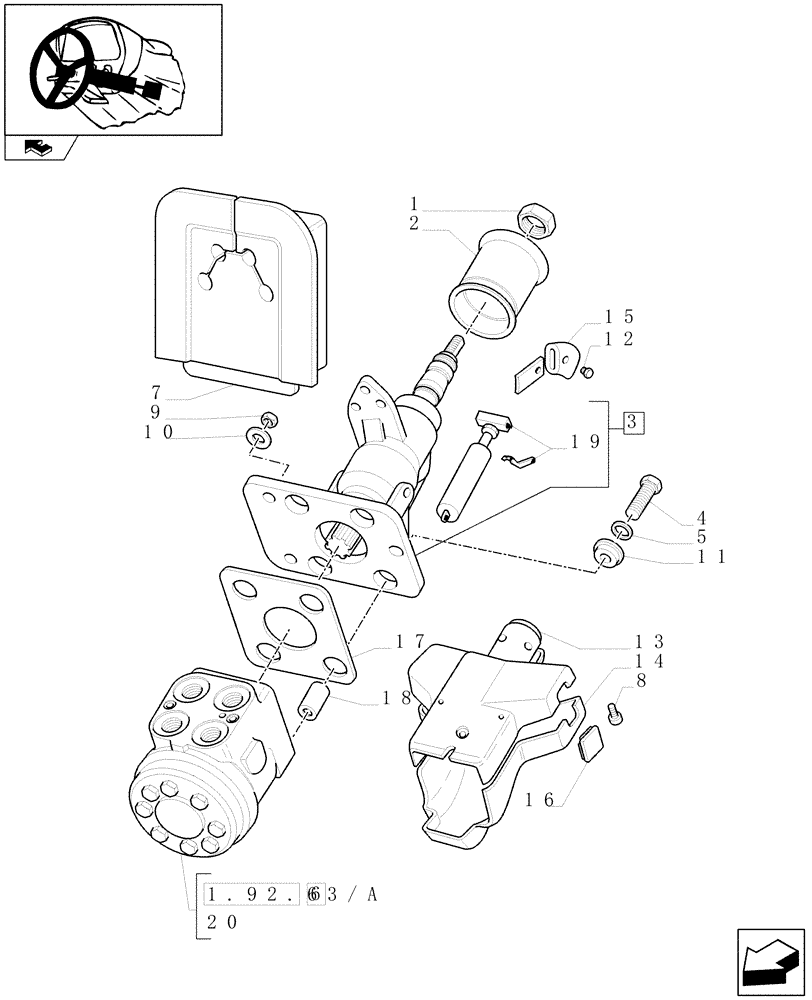

Запчасти Case IH FARMALL 65C (1.92.63[02]) - STEERING COLUMN (10) - OPERATORS PLATFORM/CAB

1

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

1шт.

2

87734117

SHIELD

1шт.

3

5176081

STEERING COLUMN,Tilting, Telescoping

1шт.

4

11106624

SCREW,Hex, M10 x 1.5 x 35 mm, Cl 8.8, Full Thd

4шт.

5

12626224

WASHER,10.2mm ID x 25mm OD x 3mm Thk

4шт.

6

5173214

HYDRAULIC STEERING

ASSY

1шт.

6

5196527

HYDRAULIC STEERING

ASSY, Serial Range: -C6769

1шт.

7

87388262

RUBBER PAD

1шт.

8

13273811

SCREW,Pozidriv Pan Hd, M5 x 8mm

2шт.

8

12674404

SELF-TAP SCREW,Csk Hd, M5 x 16mm

4шт.

9

43362

NUT,M8 x 1.25, Cl 10

3шт.

10

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

3шт.

11

5197926

PLASTIC-RUBBER TUBE,14mm ID x 20mm OD x 16mm L

4шт.

12

14418924

SCREW,M4 x 8mm, Cl 8.8, Full Thd

1шт.

13

87399476

COVER

Upper

1шт.

14

87399477

COVER

Lower

1шт.

15

87302009

KNOB

1шт.

16

87559278

PLUG,1.5mm, Black

1шт.

In place of Shuttle lever

1шт.

17

5197927

SHIM,45mm ID x 82mm OD x 5mm Thk

1шт.

18

5197925

SPACER,10.1mm ID x 14mm OD x 20mm L

4шт.

19

9972148

GAS STRUT

1шт.

20

84266842

HYDRAULIC STEERING

, Start Serial: D6769

1шт.
