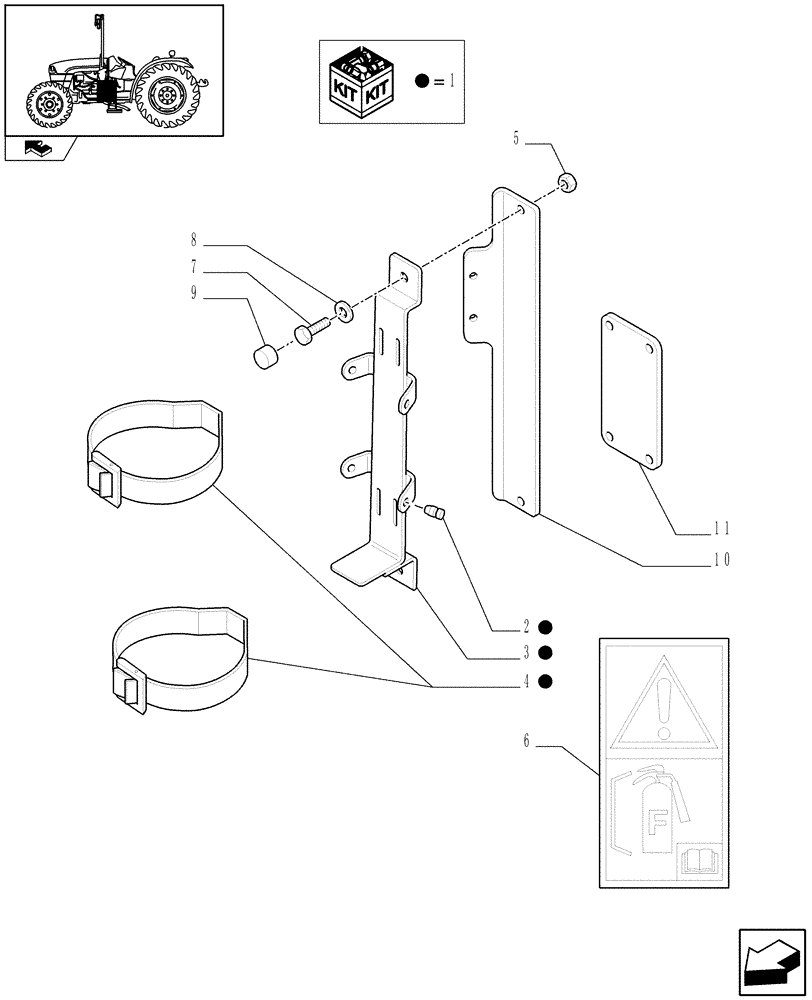

Запчасти Case IH FARMALL 65C (1.90.7[02]) - FIRE EXTINGUISHER PREDISPOSITION - L/CAB - D6654 (10) - OPERATORS PLATFORM/CAB

1

84280012

SUPPORT

1шт.

2

14567080

FASTENER,Stud, Ribbed, 5.50mm x 4mm x 1mm, Plastic

4шт.

3

84280775

BRACKET, SUPPORTING

1шт.

4

84277341

BRACKET

2шт.

5

16100814

NUT,M8, Cl 8, DAC

6шт.

6

84269927

DECAL

1шт.

7

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

6шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

9

5163670

CAP

6шт.

10

84280653

SUPPORT

1шт.

11

84280652

PLATE

1шт.

Part Number is Valid for Std Equipment when Trailer Brake Bracket (VAR.330895) is chosen

1шт.
