(1.82.7/20) - 8 DELUXE FAST CONNECTORS AND OIL COLLECTION SYSTEM FOR 4 CONTROL VALVES (VAR.330546)

Запчасти Case IH FARMALL 65C (1.82.7/20) - 8 DELUXE FAST CONNECTORS AND OIL COLLECTION SYSTEM FOR 4 CONTROL VALVES (VAR.330546) (07) - HYDRAULIC SYSTEM

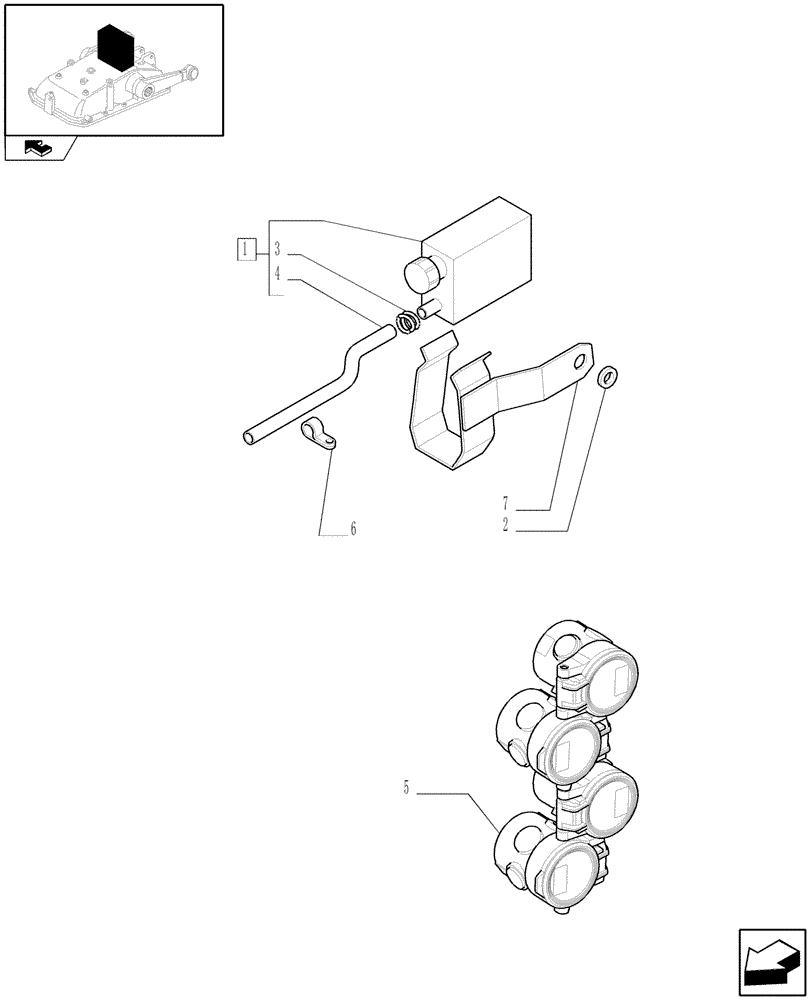

Схема запчастей Case IH FARMALL 65C - (1.82.7/20) - 8 DELUXE FAST CONNECTORS AND OIL COLLECTION SYSTEM FOR 4 CONTROL VALVES (VAR.330546) (07) - HYDRAULIC SYSTEM
4
5
3
6
1
2
7
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47133028

PAN,0.3L

2шт.

2

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

2шт.

3

13423371

HOSE CLAMP,13.6mm - 15.1mm

15.1-13.6

1шт.

4

19308980

HOSE,7.50 mm ID x 525.00 mm

1шт.

5

47132639

PLUG

2шт.

6

5132413

COLLAR

2шт.

7

47136266

BRACKET

RH

1шт.

7

47132383

BRACKET

LH

1шт.
