(1.82.7/15[04]) - 2 MID-MOUNT REMOTE VALVES WITH JOYSTICK AND 2 QUICK COUPLERS - QUICK COUPLING (VAR.334125-335125)

Запчасти Case IH FARMALL 65C (1.82.7/15[04]) - 2 MID-MOUNT REMOTE VALVES WITH JOYSTICK AND 2 QUICK COUPLERS - QUICK COUPLING (VAR.334125-335125) (07) - HYDRAULIC SYSTEM

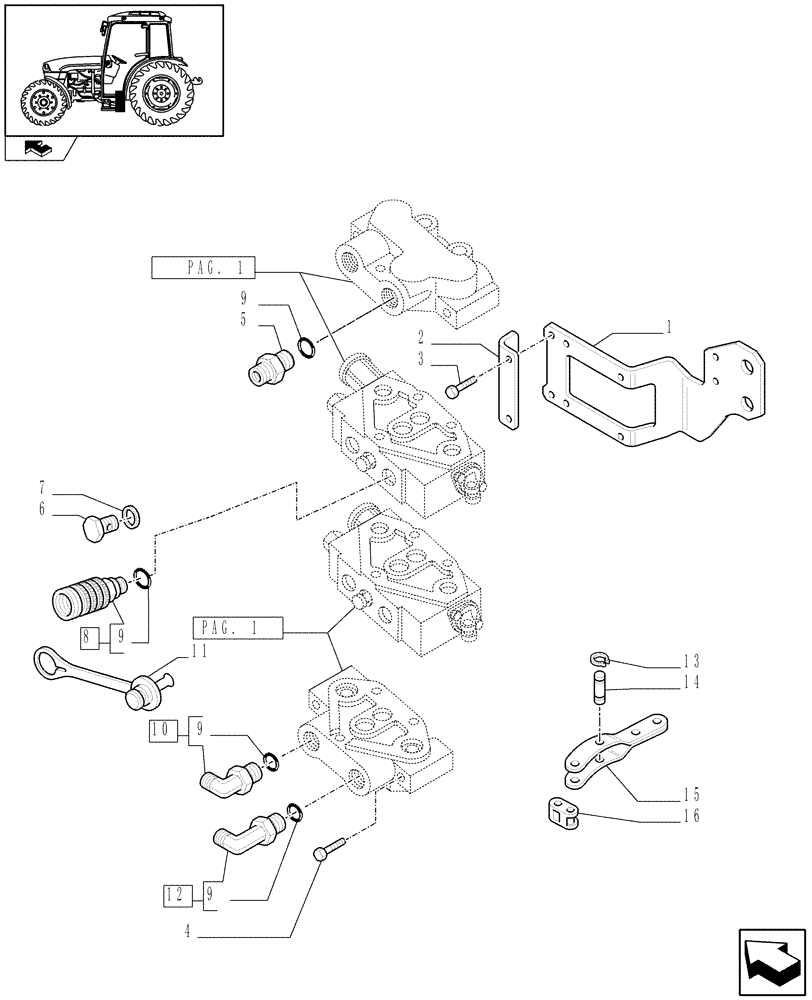

Схема запчастей Case IH FARMALL 65C - (1.82.7/15[04]) - 2 MID-MOUNT REMOTE VALVES WITH JOYSTICK AND 2 QUICK COUPLERS - QUICK COUPLING (VAR.334125-335125) (07) - HYDRAULIC SYSTEM
15
9
4
2
9
pag. 1
home
pag. 1
9
16
1
10
5
8
7
13
12
11
14
6
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47127200

BRACKET

1шт.

2

47126456

BRACKET

1шт.

3

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

4

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

4шт.

5

5158802

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

M22 x 1.5

1шт.

6

10300840

PLUG

M18 x 1.5

2шт.

7

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

18 x 24 x 1.5

4шт.

8

5179556

COUPLING, QUICK, FEM,Hex, M18 x 1.5 x 63.3mm L

include p/n 1534623C1

2шт.

1534623C1

SEAL KIT

1шт.

9

14438085

O-RING,19.3mm ID x 2.4mm

6шт.

10

5148919

ELBOW

M22 x 1.5

1шт.

10

87616375

HYD CONNECTOR

1шт.

11

5186723

DUST CAP,24mm, Black

Black

2шт.

12

47128049

HYD CONNECTOR

1шт.

13

11087776

CIRCLIP,Ext., M6, BLO

2шт.

14

5172456

PIN,6mm OD x 20mm L

2шт.

15

5178877

CLEVIS

2шт.

16

5116896

LINK,19.05mm Pitch

2шт.
