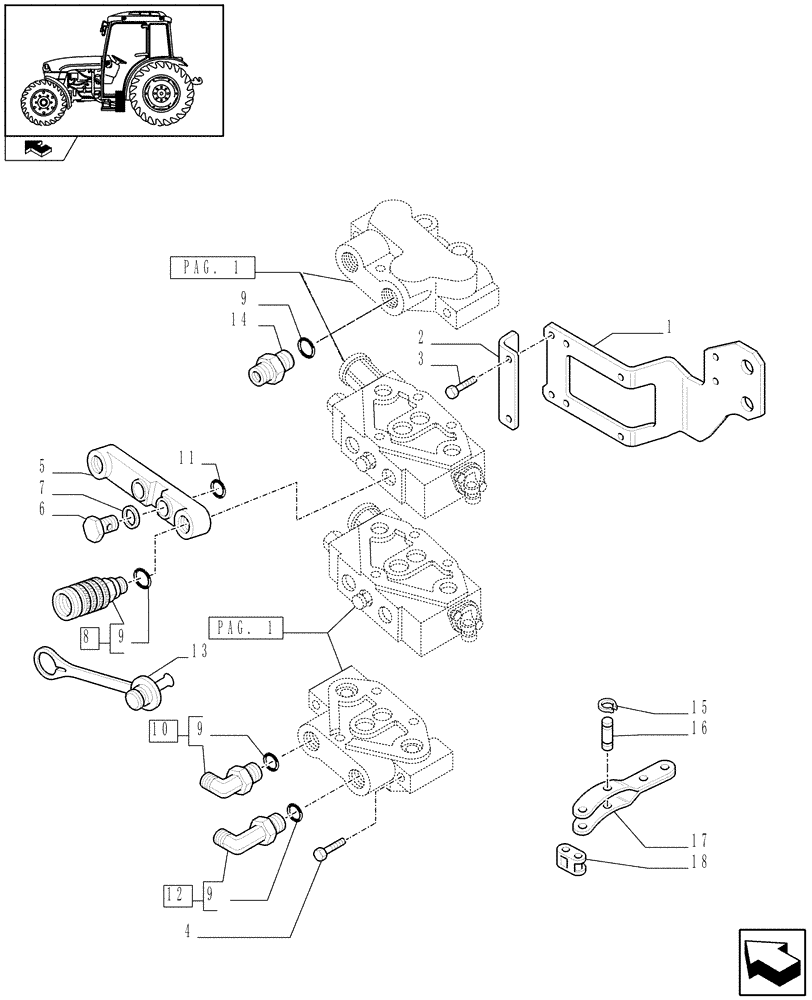

Запчасти Case IH FARMALL 65C (1.82.7/15[03]) - 2 MID-MOUNT REMOTE VALVES WITH JOYSTICK AND 4 QUICK COUPLERS - QUICK COUPLING (VAR.330125-331125-332125) (07) - HYDRAULIC SYSTEM

1

47127200

BRACKET

1шт.

2

47126456

BRACKET

1шт.

3

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

4

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

4шт.

5

5185533

HYD CONNECTOR

2шт.

6

5168481

BANJO BOLT,M18 x 1.5 x 38mm

4шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

8

5179557

COUPLING, QUICK, FEM

include p/n 1534623C1

4шт.

1534623C1

SEAL KIT

1шт.

9

14438085

O-RING,19.3mm ID x 2.4mm

6шт.

10

5148919

ELBOW

M22 x 1.5

1шт.

10

87616375

HYD CONNECTOR

1шт.

11

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

4шт.

12

47128049

HYD CONNECTOR

1шт.

13

5186723

DUST CAP,24mm, Black

Black

2шт.

13

47133328

PLUG,24mm, Grey

Gray

2шт.

14

5158802

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

M22 x 1.5

1шт.

15

11087776

CIRCLIP,Ext., M6, BLO

2шт.

16

5172456

PIN,6mm OD x 20mm L

2шт.

17

5178877

CLEVIS

2шт.

18

5116896

LINK,19.05mm Pitch

2шт.
