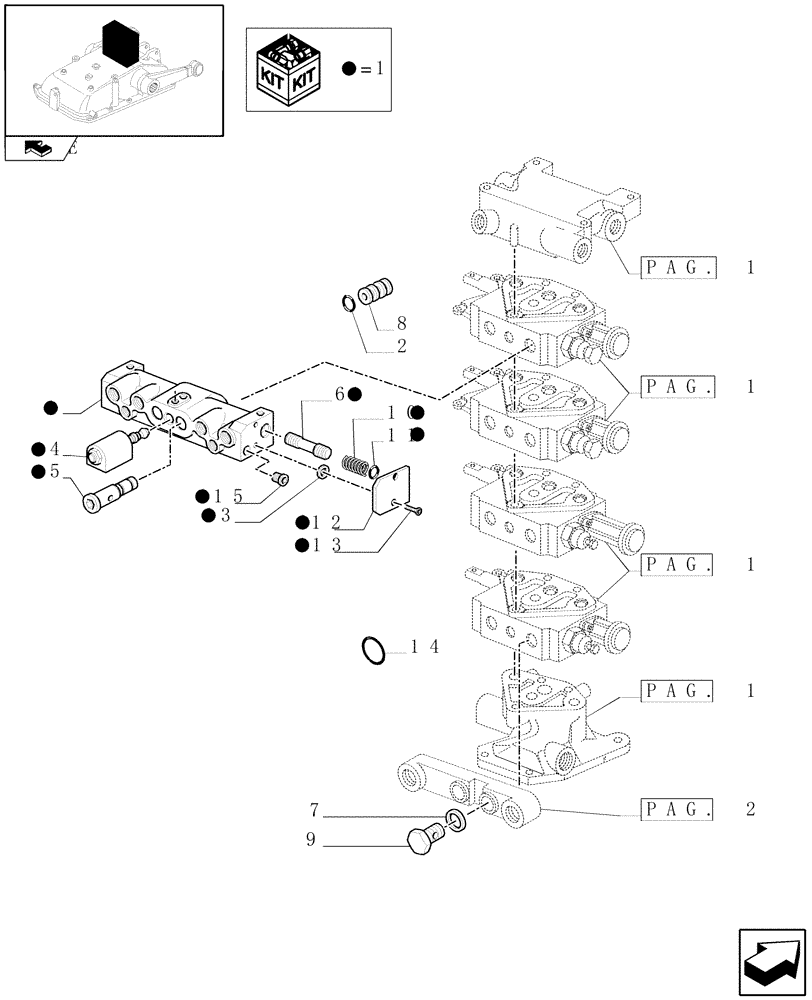

Запчасти Case IH FARMALL 65C (1.82.7/14[03]) - 4 REAR REMOTE VALVES FOR EDC W/HYDRAULIC DIVIDER - QUICK COUPLINGS (VAR.331166) (07) - HYDRAULIC SYSTEM

1

47131020

BODY

Upper

1шт.

1

47131021

BODY

Lower

1шт.

2

5190853

O-RING,0.103" Thk x 0.206" ID, -107, Cl 5, 70 Duro

8шт.

3

14437685

O-RING,9.30mm ID x 2.40mm

2шт.

4

5176119

ELECTRO-VALVE,3W - 2p with diode

1шт.

5

47131017

BANJO BOLT,M18 x 1.5 x 67mm

2шт.

6

47125557

ROD,16mm OD x 73mm L

2шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

8

5190887

HYD CONNECTOR,19.5mm L

1шт.

9

5168481

BANJO BOLT,M18 x 1.5 x 38mm

2шт.

10

47125559

SPRING,Compression, 11.5mm OD x 37mm L

2шт.

11

14457481

O-RING,0.737" ID x 0.103" Width

2шт.

12

47125558

COVER

2шт.

13

14440624

SET SCREW,Hex Soc, M5 x 12mm, Flat Pt

4шт.

14

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

15

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

4шт.
