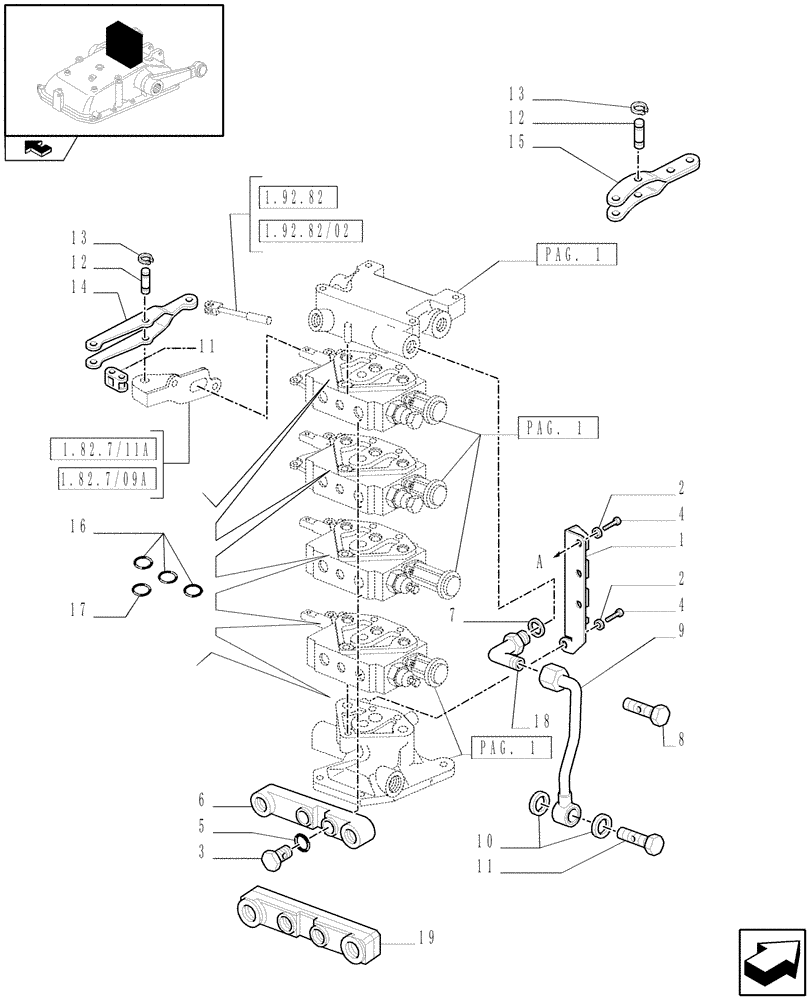

Запчасти Case IH FARMALL 65C (1.82.7/14[02]) - 4 REAR REMOTE VALVES FOR EDC W/HYDRAULIC DIVIDER - QUICK COUPLING (VAR.331166) (07) - HYDRAULIC SYSTEM

1

5179944

CONSOLE

1шт.

2

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

3

5168481

BANJO BOLT,M18 x 1.5 x 38mm

M18

2шт.

4

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

5

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

2шт.

6

5185533

HYD CONNECTOR

1шт.

7

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

8

5184345

BANJO BOLT,M18 x 1.5 x 34mm

1шт.

9

5188499

RIGID TUBE

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

6шт.

11

5116896

LINK,19.05mm Pitch

4шт.

12

5172456

PIN,6mm OD x 20mm L

4шт.

13

11087776

CIRCLIP,Ext., M6, BLO

4шт.

14

5178877

CLEVIS

2шт.

15

5178183

CLEVIS

2шт.

16

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

15шт.

17

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING

5шт.

18

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

1шт.

19

87537447

HYD CONNECTOR

1шт.
