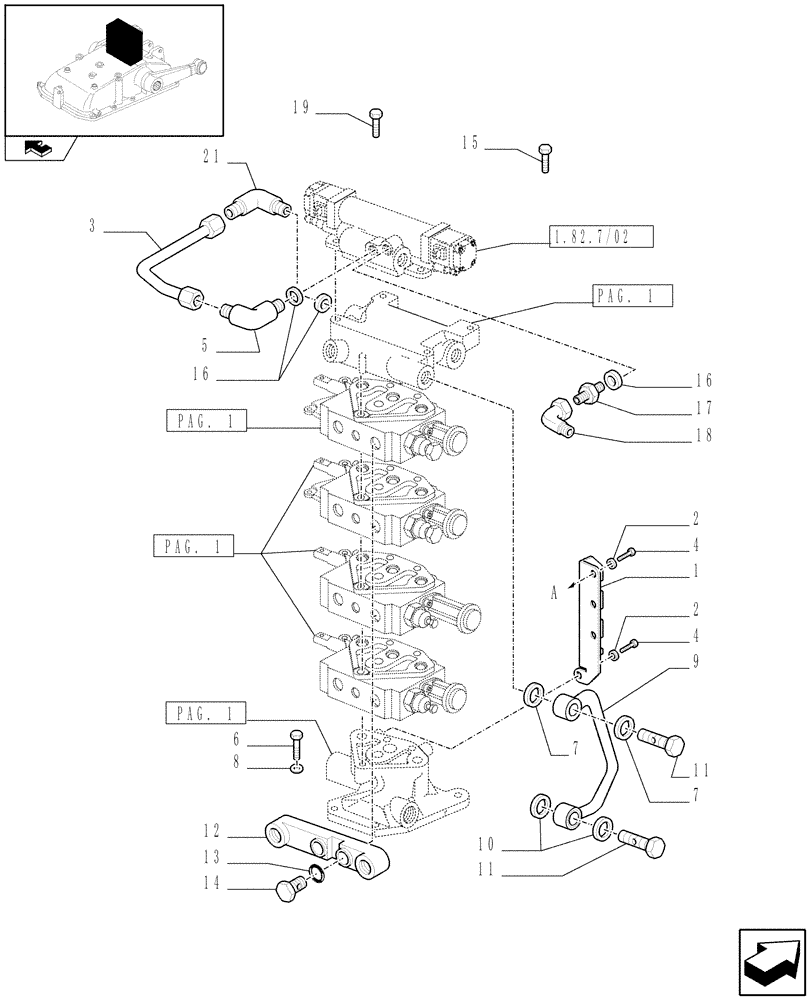

Запчасти Case IH FARMALL 65C (1.82.7/13[03]) - 4 REAR REMOTE VALVES FOR EDC - QUICK COUPLING (VAR.331165) (07) - HYDRAULIC SYSTEM

1

5179944

CONSOLE

1шт.

2

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

3

5174040

RIGID TUBE

1шт.

4

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

2шт.

6

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

7

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

4шт.

8

5188390

SPACER

1шт.

9

5178032

RIGID TUBE

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

8шт.

11

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2шт.

12

5185533

HYD CONNECTOR

4шт.

13

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

8шт.

14

5168481

BANJO BOLT,M18 x 1.5 x 38mm

M18

8шт.

15

16290124

SCREW,M12 x 1.25 x 45mm, Cl 8.8

M12 x 1.25 x 45

1шт.

16

86480S95

O-RING

3шт.

17

82002503

HYD CONNECTOR,1/2-20 UNF-2A, 7/16-20 UNF-2A, 31.2mm L

1шт.

18

86513593

90 ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

1шт.

19

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.
