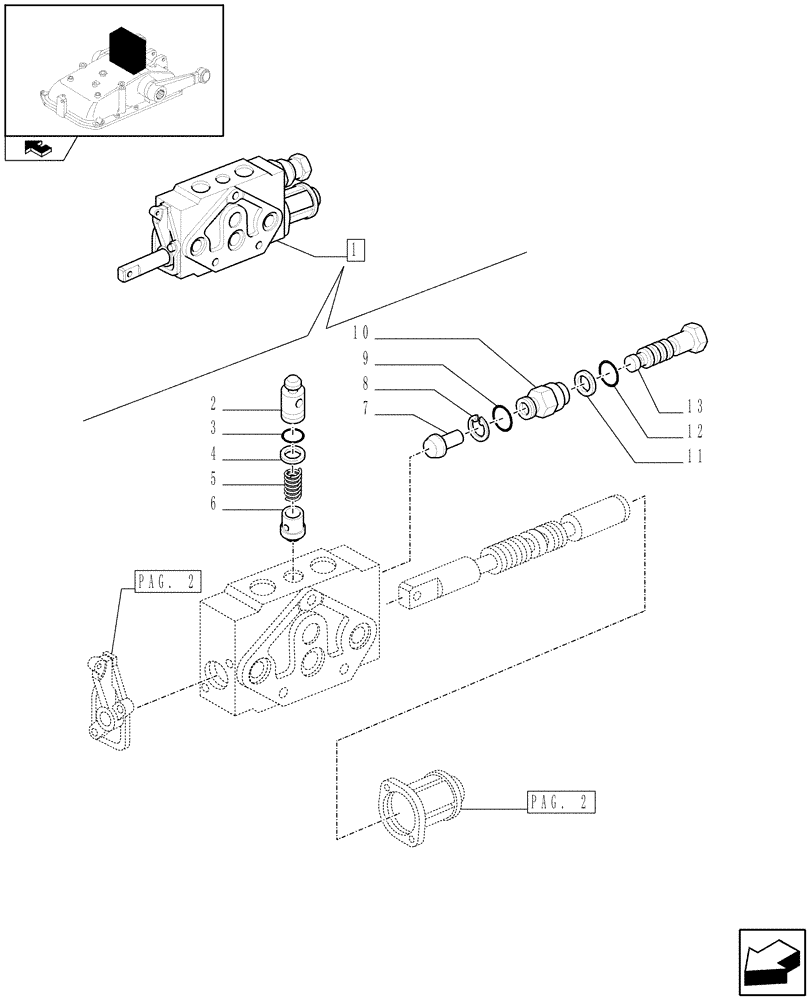

Запчасти Case IH FARMALL 65C (1.82.7/11A[01]) - SIMPLE DOUBLE EFFECT DISTRIBUTOR - PARTS (07) - HYDRAULIC SYSTEM

1

87396855

CONTROL VALVE

ASSY, S/D

1шт.

2

5135835

VALVE GUIDE,14.25mm OD x 28.5mm L

1шт.

3

5135732

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

4

5138508

BACK-UP RING,Back Up, 10mm ID x 12mm OD x 10mm Thk

1шт.

5

5116884

SPRING,Compression, 6mm OD x 16mm L

1шт.

6

5116886

PIN,9.4mm OD x 10.5mm L

1шт.

7

5136347

PIN,3.8mm OD x 15mm L

1шт.

8

11087876

CIRCLIP,M7

1шт.

9

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

10

5136346

BODY,7/8" - 14

1шт.

11

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

12

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

1.78 x 6.75

1шт.

13

5136348

PIN,10mm OD x 37mm L

1шт.
