(1.82.7/09[02]) - 3 REAR REMOTE VALVES FOR MDC - RINGS (VAR.330195)

Запчасти Case IH FARMALL 65C (1.82.7/09[02]) - 3 REAR REMOTE VALVES FOR MDC - RINGS (VAR.330195) (07) - HYDRAULIC SYSTEM

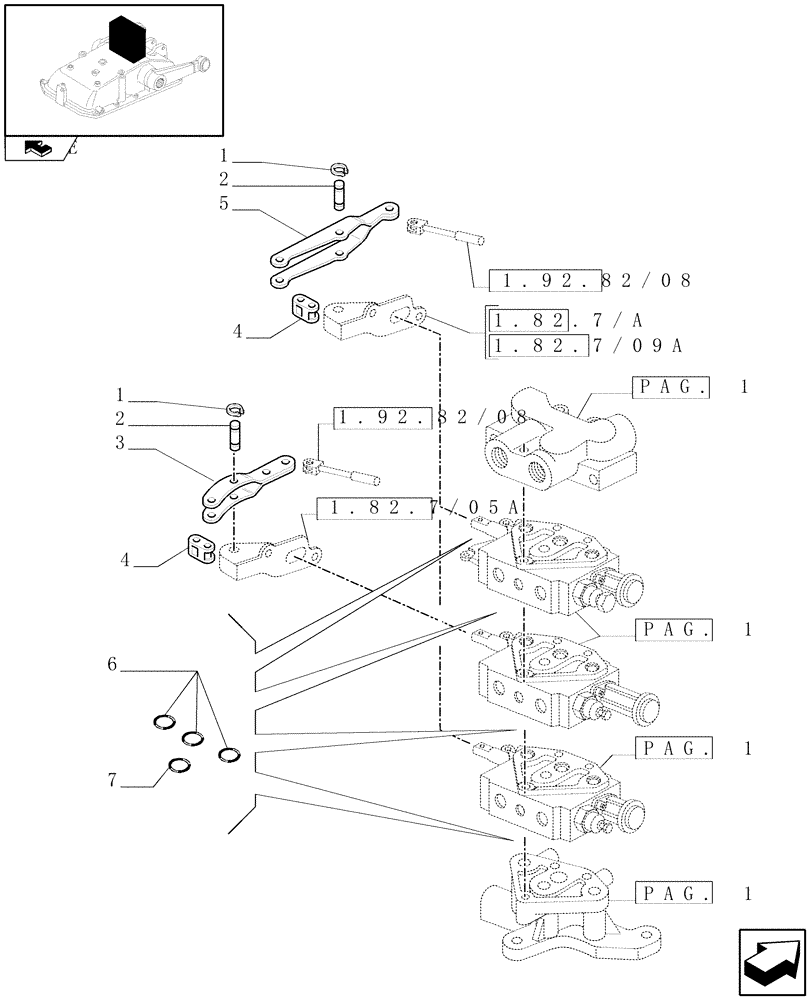

Схема запчастей Case IH FARMALL 65C - (1.82.7/09[02]) - 3 REAR REMOTE VALVES FOR MDC - RINGS (VAR.330195) (07) - HYDRAULIC SYSTEM
2
5
1
7
6
4
3
4
2
1
home
pag. 1
pag. 1
pag. 1
1.82.7/05a
1.82.7/09a
1.82.7/a
pag. 1
1.92.82/08
1.92.82/08
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

11087776

CIRCLIP,Ext., M6, BLO

3шт.

2

5172456

PIN,6mm OD x 20mm L

3шт.

3

5178877

CLEVIS

2шт.

4

5116896

LINK,19.05mm Pitch

3шт.

5

5178183

CLEVIS

1шт.

6

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

12шт.

7

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING

4шт.
