(1.82.7/06[02]) - 2 REAR REMOTE VALVES FOR MID-MOUNT AND MDC - RINGS (VAR.332108)

Запчасти Case IH FARMALL 65C (1.82.7/06[02]) - 2 REAR REMOTE VALVES FOR MID-MOUNT AND MDC - RINGS (VAR.332108) (07) - HYDRAULIC SYSTEM

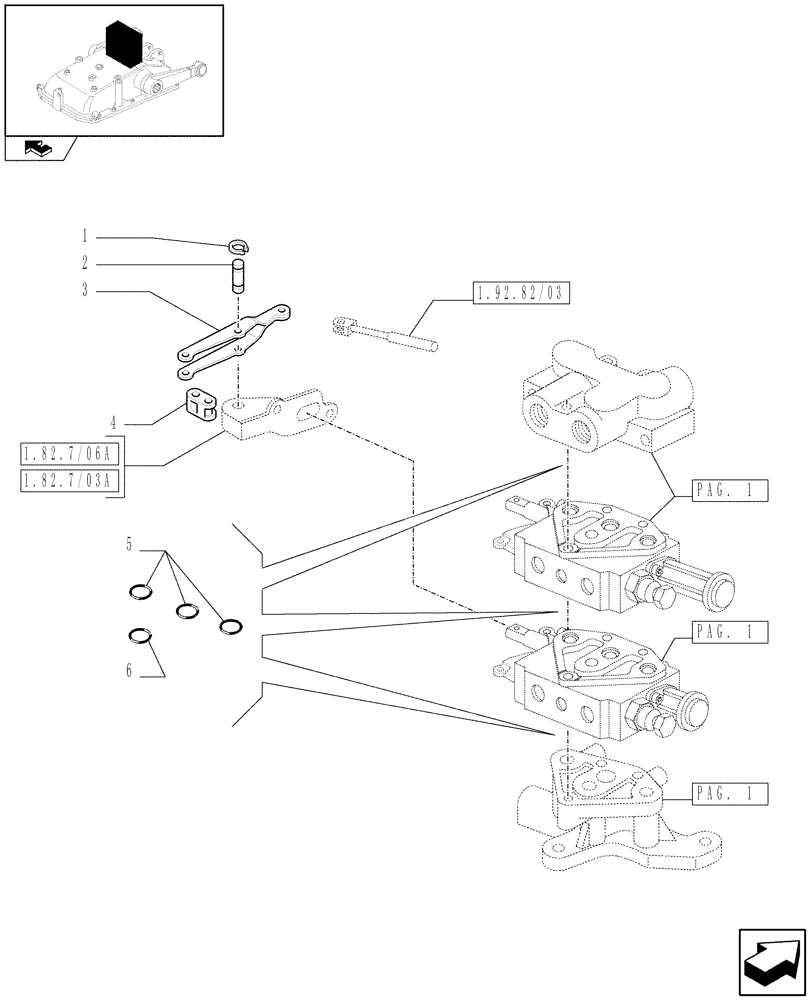

Схема запчастей Case IH FARMALL 65C - (1.82.7/06[02]) - 2 REAR REMOTE VALVES FOR MID-MOUNT AND MDC - RINGS (VAR.332108) (07) - HYDRAULIC SYSTEM
6
1.92.82/03
pag. 1
home
1.82.7/03a
1.82.7/06a
pag. 1
pag. 1
4
1
2
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

11087776

CIRCLIP,Ext., M6, BLO

2шт.

2

5172456

PIN,6mm OD x 20mm L

2шт.

3

5178183

CLEVIS

2шт.

4

5116896

LINK,19.05mm Pitch

2шт.

5

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

9шт.

6

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING

3шт.
