(1.82.7/03[02]) - 1 REAR REMOTE VALVE FOR MID-MOUNT AND MDC - RINGS (VAR.331107)

Запчасти Case IH FARMALL 65C (1.82.7/03[02]) - 1 REAR REMOTE VALVE FOR MID-MOUNT AND MDC - RINGS (VAR.331107) (07) - HYDRAULIC SYSTEM

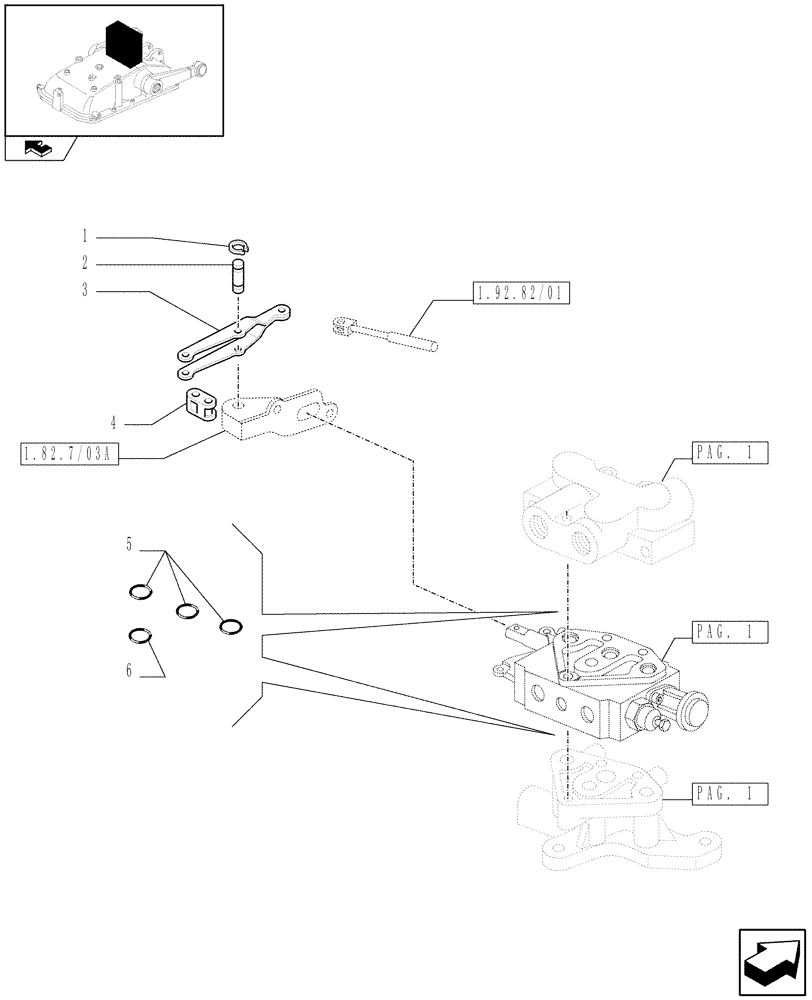

Схема запчастей Case IH FARMALL 65C - (1.82.7/03[02]) - 1 REAR REMOTE VALVE FOR MID-MOUNT AND MDC - RINGS (VAR.331107) (07) - HYDRAULIC SYSTEM
4
6
5
1.92.82/01
pag. 1
home
1.82.7/03a
pag. 1
pag. 1
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

11087776

CIRCLIP,Ext., M6, BLO

1шт.

2

5172456

PIN,6mm OD x 20mm L

1шт.

3

5178183

CLEVIS

1шт.

4

5116896

LINK,19.05mm Pitch

1шт.

5

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

6шт.

6

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING

2шт.
