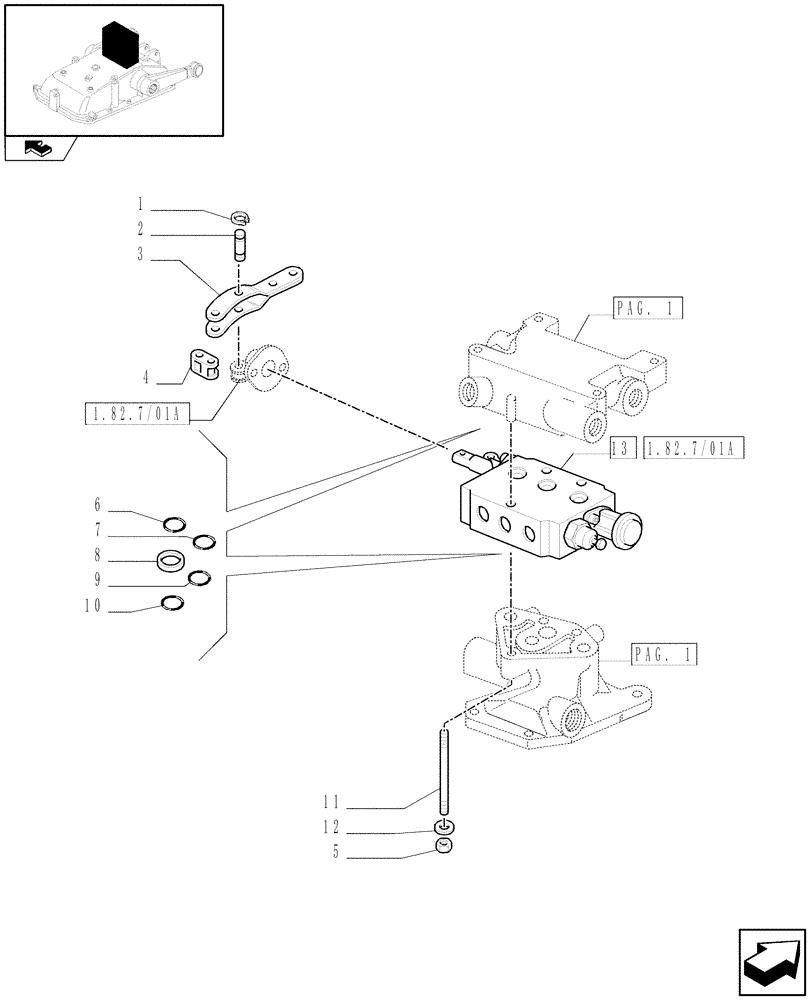

Запчасти Case IH FARMALL 65C (1.82.7/01[02]) - 1 REAR REMOTE VALVE FOR MID-MOUNT AND EDC - RINGS (07) - HYDRAULIC SYSTEM

1

11087776

CIRCLIP,Ext., M6, BLO

1шт.

2

5172456

PIN,6mm OD x 20mm L

1шт.

3

5178877

CLEVIS

1шт.

4

5116896

LINK,19.05mm Pitch

1шт.

5

5116857

NUT,3/8" - 24

3/8"

6шт.

6

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

D=24

3шт.

7

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

D=19.2

6шт.

8

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3шт.

9

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

9шт.

10

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

D=18.72

9шт.

11

47129213

TIE-ROD

3шт.

12

10569471

LOCK WASHER,Lock, 3/8"

3шт.

13

5186278

CONTROL VALVE

ASSY, W/Kick-Out

1шт.
