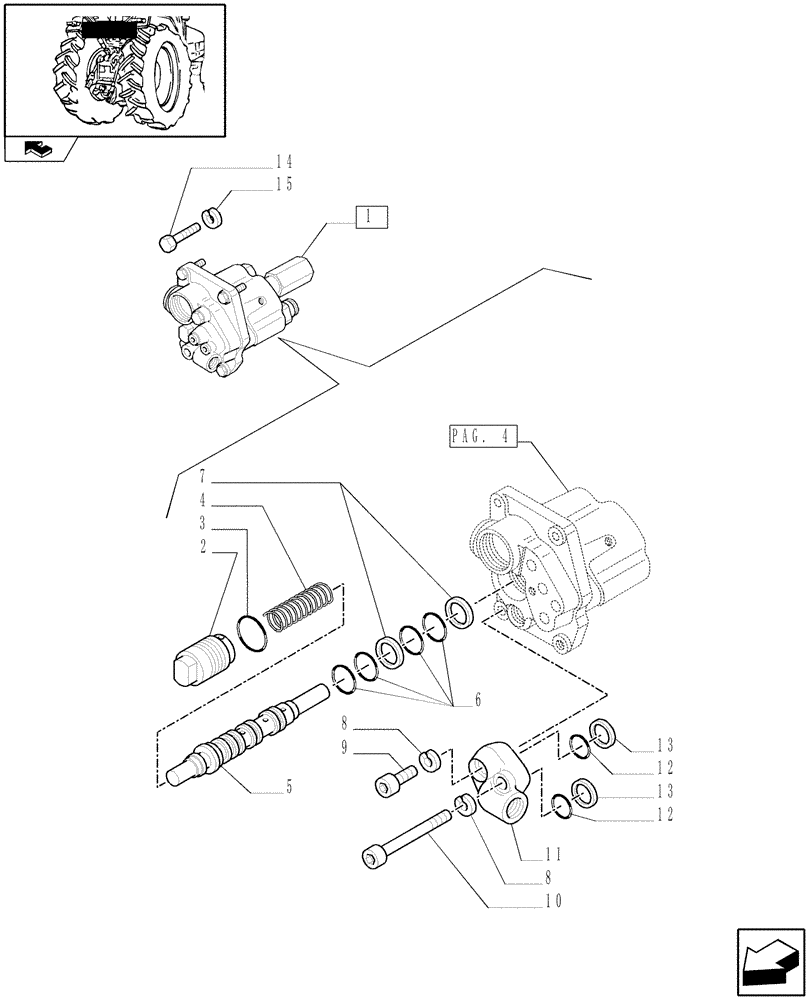

Запчасти Case IH FARMALL 65C (1.82.4[02]) - LIFTER DISTRIBUTOR AND VALVES - BREAKDOWN - C6635 (07) - HYDRAULIC SYSTEM

1

47124174

CONTROL VALVE

ASSY

1шт.

84277583R

REMAN-HYD VALVE

FARMALL 75C (04/08) (4/08), Reman For New P/N 47124174

1шт.

84277583C

CORE-VALVE HYD

Return Number

1шт.

2

5117725

PLUG,M27 x 1.5

1шт.

3

14453981

O-RING,0.989" ID x 0.07" Width

1шт.

4

4973361

SPRING,Compression, 15.5mm OD x 50.5mm L

1шт.

5

5180930

PILOT VALVE

1шт.

6

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

4шт.

7

5117726

WASHER,17.83mm ID x 22.19mm OD x 1.14mm Thk

2шт.

8

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

9

14307421

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8

1шт.

10

14308421

HEX SOC SCREW,M10 x 1.25 x 80mm, Cl 8.8

1шт.

11

5173913

HYD CONNECTOR,M18 x 1.5

1шт.

12

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

13

44015841

BACK-UP RING,19mm ID x 20mm OD x 2.05mm Thk

2шт.

14

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

15

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.
