(1.82.2[02]) - MECHANICAL LIFT GROUND CONTROL - LEVER AND SHAFT (VAR.330834)

Запчасти Case IH FARMALL 65C (1.82.2[02]) - MECHANICAL LIFT GROUND CONTROL - LEVER AND SHAFT (VAR.330834) (07) - HYDRAULIC SYSTEM

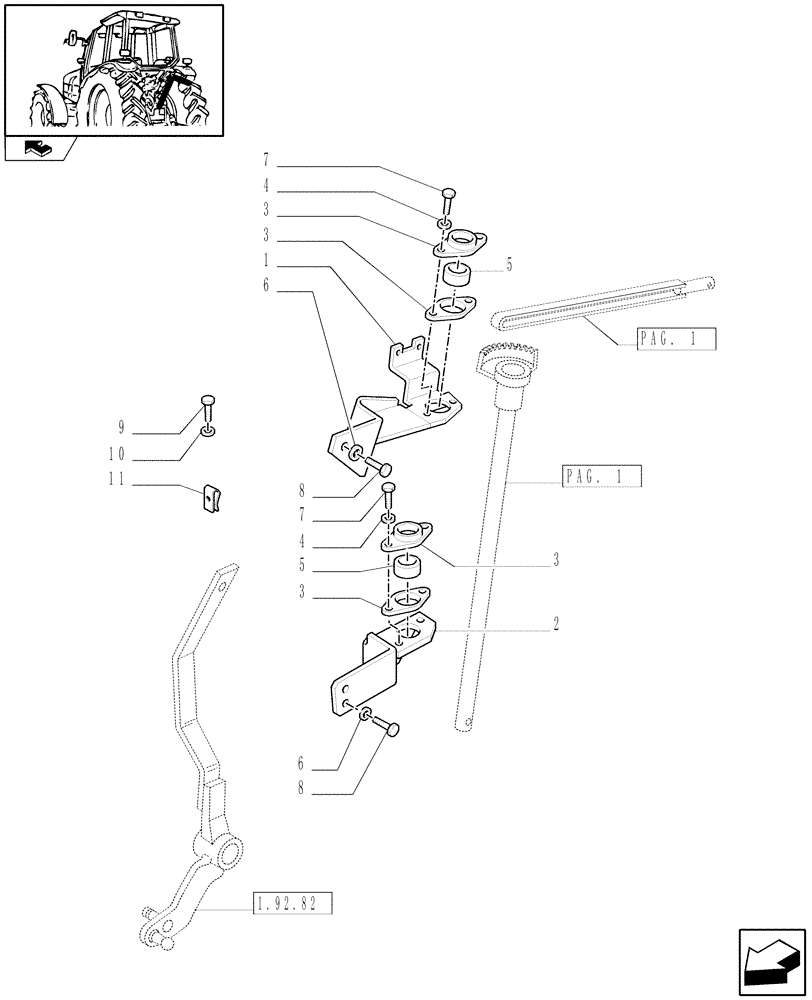

Схема запчастей Case IH FARMALL 65C - (1.82.2[02]) - MECHANICAL LIFT GROUND CONTROL - LEVER AND SHAFT (VAR.330834) (07) - HYDRAULIC SYSTEM
6
3
8
home
3
pag. 1
10
4
1
4
8
7
5
11
3
9
3
5
6
1.92.82
pag. 1
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5177514

SUPPORT

Upper, W/CAB

1шт.

1

5179584

SUPPORT

Upper, L/CAB

1шт.

2

5177517

SUPPORT

Lower, W/CAB

1шт.

2

5179583

SUPPORT

Lower, L/CAB

1шт.

3

5110722

CUP

4шт.

4

10516474

LOCK WASHER

4шт.

5

5127536

BUSHING,20.5mm ID x 32mm OD

4шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

7

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

8

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

9

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

10

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

11

11064076

CLIP,M8 x 5 x 0.94mm

1шт.
