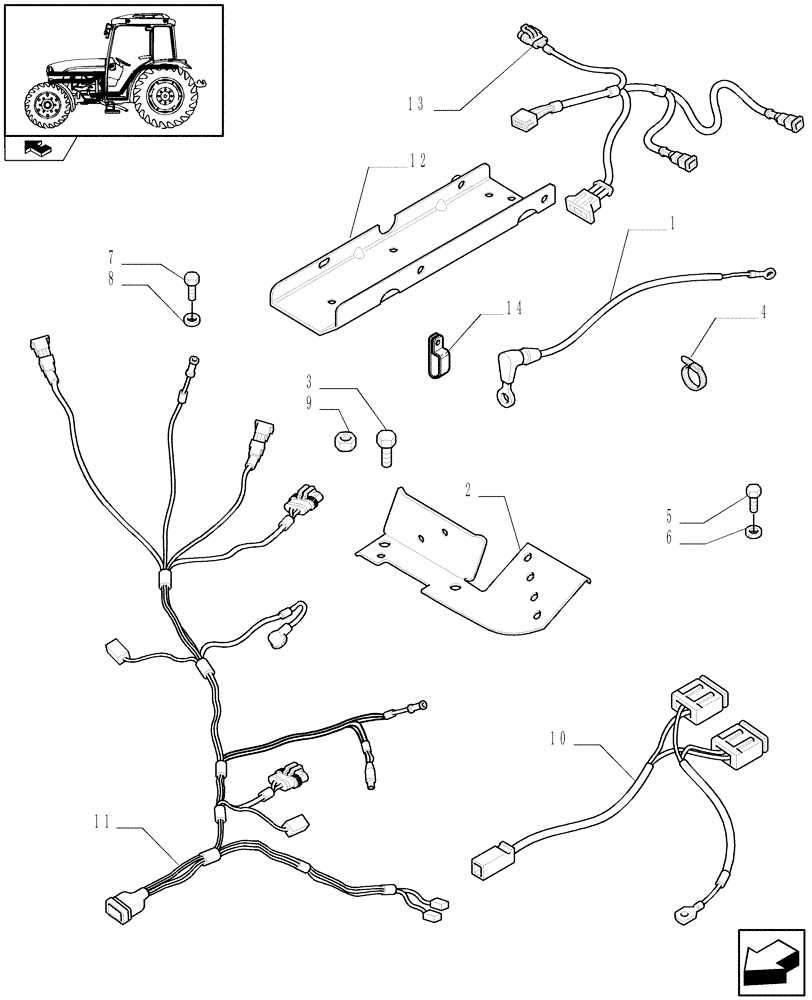

Запчасти Case IH FARMALL 65C (1.75.4[04]) - AUXILIARY CABLES - W/CAB (06) - ELECTRICAL SYSTEMS

1

87370901

CABLE

1шт.

Harness From Starter Motor to Alternator

1шт.

2

87677157

BRACKET

1шт.

3

14440624

SET SCREW,Hex Soc, M5 x 12mm, Flat Pt

2шт.

4

14560287

CABLE TIE,207.00mm L

COLLAR

5шт.

5

16042921

BOLT,Hex, M8 x 10mm, Cl 8.8, Full Thd

1шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

7

10979421

SCREW,Hex, M6 x 10mm, Cl 8.8

1шт.

8

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

1шт.

9

14059211

FLANGE NUT,M6 x 1, Flg, Cl 8

2шт.

10

87737135

CABLE

, Serial Range: -C6502

1шт.

Engine Side Power Harness

1шт.

10

84283332

ELECTRIC CABLE

, Start Serial: D6502

1шт.

Engine Side Power Harness

1шт.

11

87368933

ELECTRIC CABLE

, Serial Range: -C6502

1шт.

Engine Side Harness

1шт.

11

84287633

ELECTRIC CABLE

, Serial Range: D6502-C7236

1шт.

Engine Side Harness

1шт.

11

47370175

ELECTRIC CABLE

, Start Serial: D7236

1шт.

Engine Side Harness

1шт.

12

87690426

CHANNEL

1шт.

13

87665869

CABLE

EDC

1шт.

With Electro - Hydraulic 4WD Engagement VAR.331307-334307

1шт.

14

5156426

COLLAR

3шт.

With Electro - Hydraulic 4WD Engagement VAR.331307-334307

1шт.
