Запчасти Case IH FARMALL 65C (1.40.0/10[02]) - FRONT AXLE - DIFFERENTIAL GEARS AND SHAFT - 4WD (04) - FRONT AXLE & STEERING

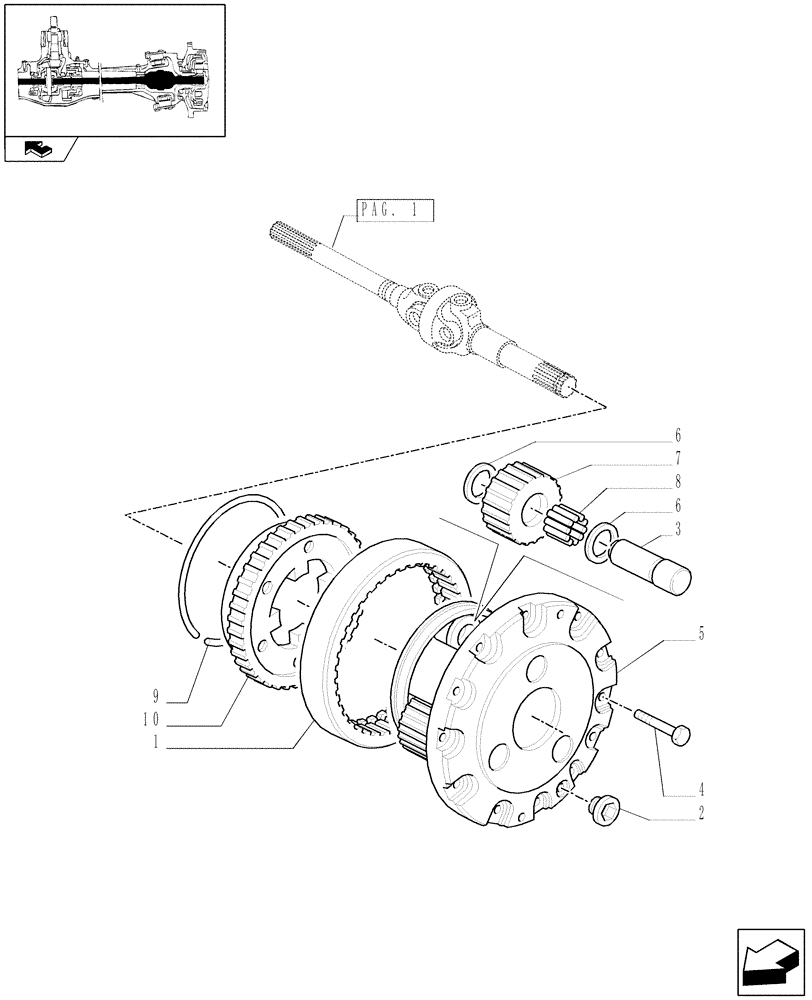

Схема запчастей Case IH FARMALL 65C - (1.40.0/10[02]) - FRONT AXLE - DIFFERENTIAL GEARS AND SHAFT - 4WD (04) - FRONT AXLE & STEERING
8
10
2
3
5
7
9
6
1
6
pag. 1
home
4

Артикул

Название

Примечание

Количество

1

5165273

RING GEAR,60T

2шт.

2

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

3

5181050

PIN,27mm OD x 63.5mm L

6шт.

4

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

20шт.

5

5181049

SUPPORT

2шт.

6

4997510

THRUST WASHER,25.7mm ID x 45mm OD x 0.8mm Thk

MM.0.8

12шт.

7

5169137

GEAR,23T

6шт.

8

87565312

NEEDLE BEARING,25.6mm ID x 35.6mm OD x 29.8mm W

6шт.

9

5165162

SNAP RING,M50, Int

2шт.

10

5173284

GEAR,60T

2шт.

Выбрано товаров: 10
