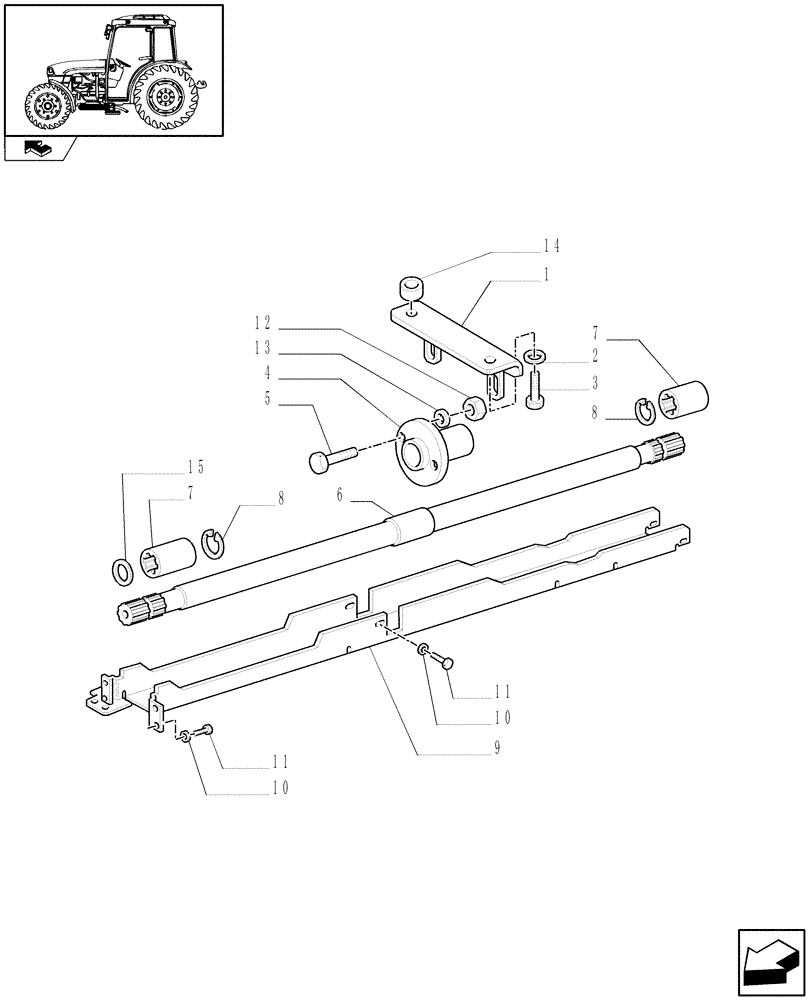

Запчасти Case IH FARMALL 65C (1.38.5) - PROPELLER SHAFT - 4WD (04) - FRONT AXLE & STEERING

1

5178213

SUPPORT

1шт.

2

11197979

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

2шт.

3

15540724

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8

2шт.

4

5167098

BEARING ASSY,30mm ID

1шт.

5

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

6

87516247

PROPELLER SHAFT

1шт.

6

47136249

PROPELLER SHAFT

1шт.

Less Waterproof Trasmission 4WD, VAR.331449-335449-338449

1шт.

7

5199243

SPLINED COUPLING

2шт.

8

11067776

SNAP RING,M29, Ext

4шт.

9

87517116

SHIELD

1шт.

9

47136399

SHIELD

1шт.

Less Waterproof Trasmission 4WD, VAR.331449-335449-338449

1шт.

10

11197874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 2.2mm Thk

6шт.

11

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

6шт.

12

12164714

NUT,M10 x 1.25, Cl 8

2шт.

13

11198574

BELLEVILLE WASHER,Belleville, M10.5

2шт.

14

5178325

SPACER,15mm ID x 30mm OD x 18mm L

2шт.

15

4997301

SHIM,29mm ID x 40mm OD x 2.2mm Thk

1шт.

15

4997302

SHIM,29mm ID x 40mm OD x 2.5mm Thk

1шт.

15

4997303

SHIM,29mm ID x 40mm OD x 2.8mm Thk

1шт.

15

4997304

SHIM,29.6mm ID x 40mm OD x 3mm Thk

1шт.

15

4997305

SHIM,29.6mm ID x 40mm OD x 3.3mm Thk

1шт.

15

4997306

SHIM,29.6mm ID x 40mm OD x 3.7mm Thk

1шт.

15

4997307

SHIM,29.6mm ID x 40mm OD x 4mm Thk

1шт.

15

4997308

SHIM,29.6mm ID x 40mm OD x 4.3mm Thk

1шт.

15

5158051

SHIM,29.6mm ID x 40mm OD x 1.5mm Thk

1шт.

15

5158052

SHIM,29.6mm ID x 40mm OD x 1.9mm Thk

1шт.
