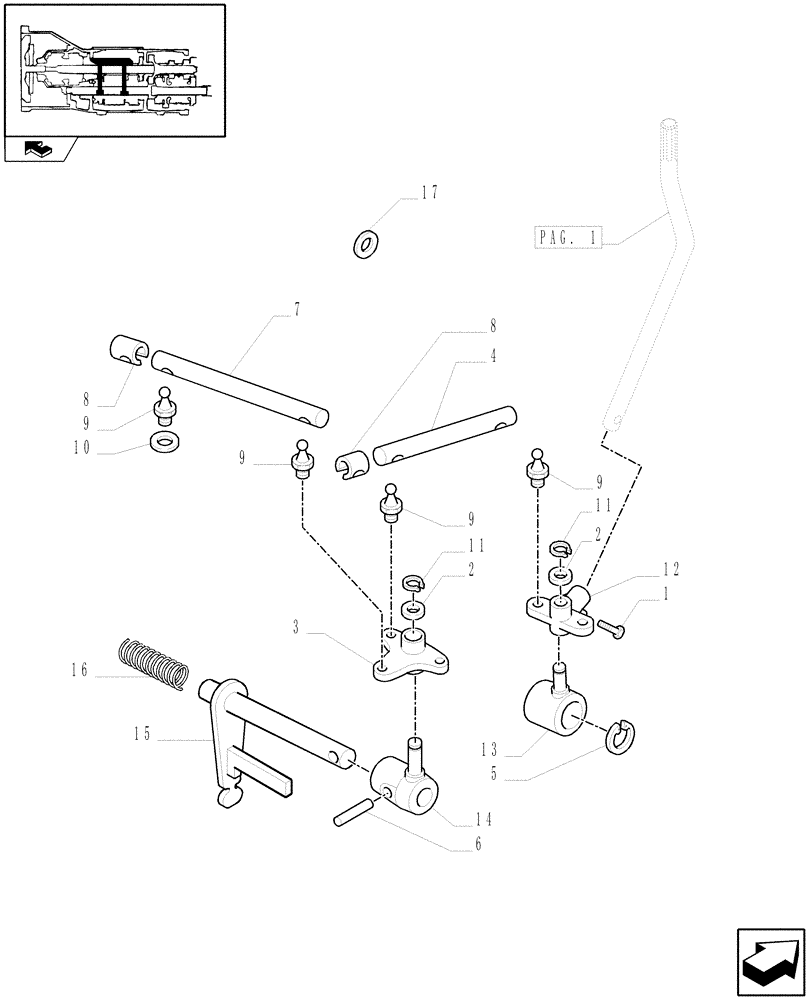

Запчасти Case IH FARMALL 65C (1.32.2[02]) - CENTRAL REDUCTION GEARS CONTROLS (03) - TRANSMISSION

1

44013453

SCREW,Hex, M12 x 1.25 x 33mm

M12 x 1.25 x 28

1шт.

2

13550704

WASHER,16.4mm ID x 30mm OD x 3mm Thk

16 x 30

2шт.

3

5199978

LEVER

1шт.

4

5177794

TIE-ROD

164MM

2шт.

5

11068876

SNAP RING,M40, Ext

1шт.

6

14607370

ROLL PIN,M8 x 45, Slotted

1шт.

7

5177793

TIE-ROD

117MM

1шт.

8

10125574

CLAMP,13mm

6шт.

9

5166895

BALL STUD,M8

6шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

11

300625

SNAP RING,M16, Ext

2шт.

12

5199974

LEVER

1шт.

13

5175147

HUB

1шт.

14

5168293

HUB

1шт.

15

5175144

ROD

1шт.

15

5177795

ROD

1шт.

Valid for 16x16 with Synchro Gears & Power Shuttle, VAR.330278 and for 32x16 HI-LO & Power Shuttle Transmission, VAR.3302275

1шт.

16

5157487

SPRING,9.5mm OD x 44mm L

1шт.

17

14453380

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

4шт.
