(1.28.1/02[02]) - 32X16 WITH SYNCHRO GEARS AND SYNCHRO SHUTTLE WITH MECHANICAL SPLITTER - ROD AND FORK (VAR.330118)

Запчасти Case IH FARMALL 65C (1.28.1/02[02]) - 32X16 WITH SYNCHRO GEARS AND SYNCHRO SHUTTLE WITH MECHANICAL SPLITTER - ROD AND FORK (VAR.330118) (03) - TRANSMISSION

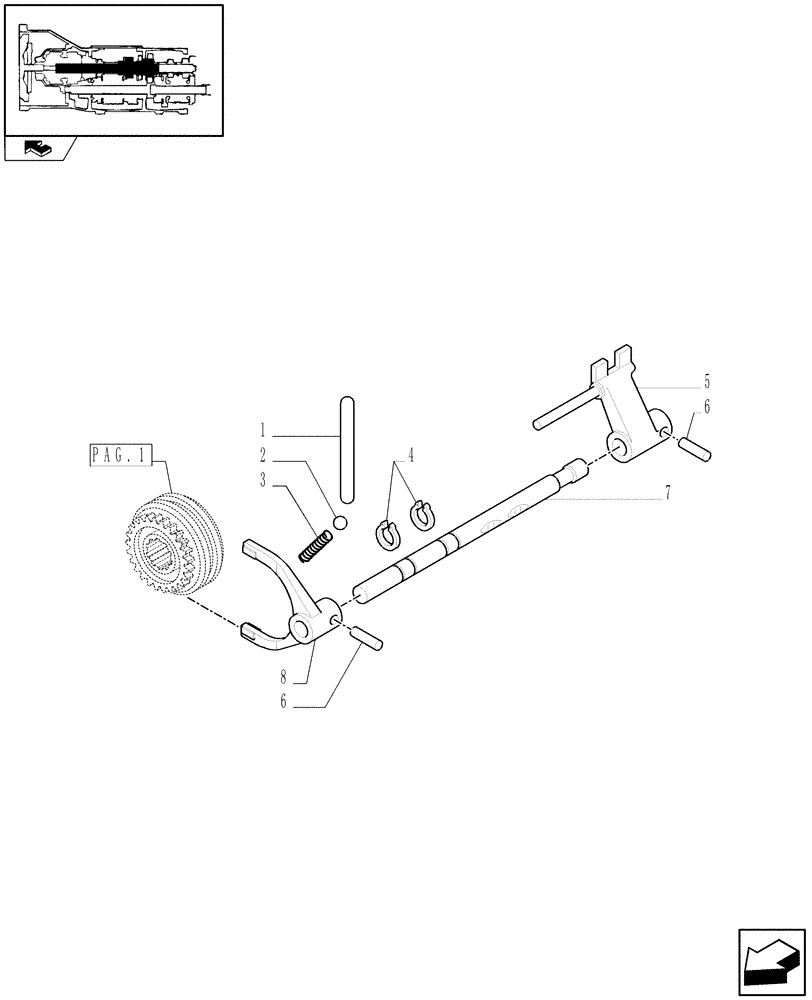

Схема запчастей Case IH FARMALL 65C - (1.28.1/02[02]) - 32X16 WITH SYNCHRO GEARS AND SYNCHRO SHUTTLE WITH MECHANICAL SPLITTER - ROD AND FORK (VAR.330118) (03) - TRANSMISSION
home
5
8
6
4
pag.1
3
6
7
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5173942

PAWL,8.5mm OD x 95.5mm L

1шт.

2

20063390

BALL,8.73mm OD

1шт.

3

5168268

SPRING,Compression, 8mm OD x 42mm L

1шт.

4

13397776

SNAP RING,M16, Int

2шт.

5

5178232

DOG

1шт.

6

13910370

ROLL PIN,6mm OD x 30mm L

2шт.

7

47130804

ROD,15.5mm OD x 352mm L

1шт.

8

5173949

YOKE,16mm Hole Dia

Splitter

1шт.

Выбрано товаров: 8
