Запчасти Case IH FARMALL 65C (1.28.1/01[03]) - 16X16 HYDRAULIC TRANSMISSION WITH SYNCHRO GEARS AND POWER SHUTTLE - TRANSM. GEARS (VAR.330278) (03) - TRANSMISSION

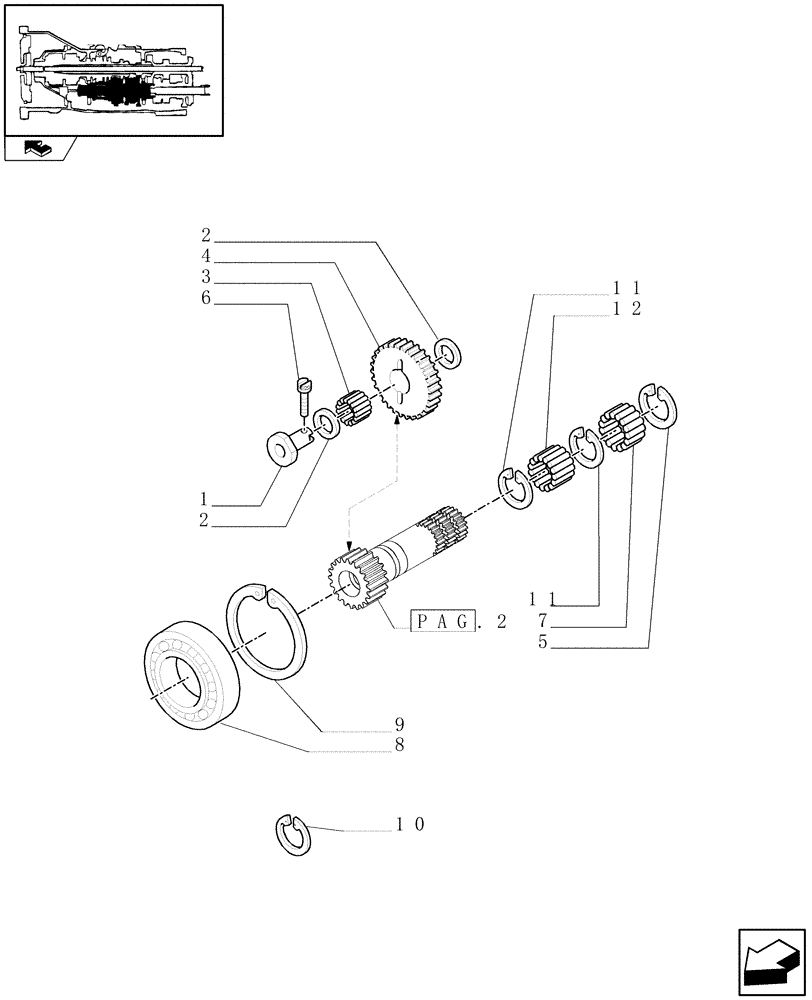

Схема запчастей Case IH FARMALL 65C - (1.28.1/01[03]) - 16X16 HYDRAULIC TRANSMISSION WITH SYNCHRO GEARS AND POWER SHUTTLE - TRANSM. GEARS (VAR.330278) (03) - TRANSMISSION
5
10
12
3
6
home
pag.2
2
11
8
9
7
4
1
2
11

Артикул

Название

Примечание

Количество

1

5176909

PIN,22mm OD x 50mm L

1шт.

2

5176895

THRUST WASHER,22.1mm ID x 40mm OD x 1mm Thk

2шт.

3

5176908

NEEDLE BEARING,22mm ID x 28mm OD x 17mm W

22 x 28 x 17

1шт.

4

5176919

GEAR,28T

Rev.

1шт.

5

5168197

SNAP RING,1.5mm Thk, Int

1шт.

6

5183643

ROLL PIN,7.8mm OD x 32mm L

1шт.

7

5168196

ROLLER CAGE BEARING,35mm ID x 40mm OD x 27mm W

35 x 40 x 27

2шт.

8

5168187

BALL BEARING,50mm ID x 90mm OD x 20mm W

50 x 90 x 20

1шт.

9

5168154

CIRCLIP,85.6mm ID x 2.6mm Thk

D=90

1шт.

10

5138419

SNAP RING,M50

1шт.

11

5168199

SNAP RING,1.5mm Thk, Int

2шт.

12

5168198

ROLLER BEARING,25mm ID x 33mm OD x 20mm W

25 x 33 x 20

1шт.

Выбрано товаров: 12
