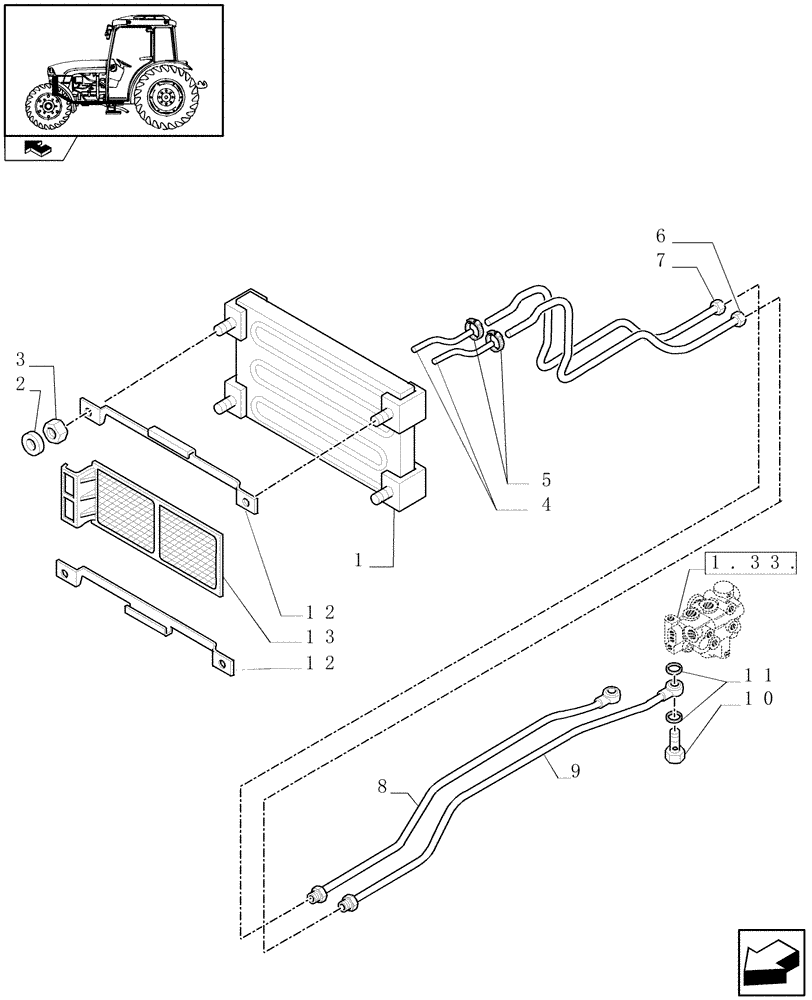

Запчасти Case IH FARMALL 65C (1.27.7[01]) - MEGA FLOW PUMP (62 L/MIN) AND OIL COOLER - RADIATOR & PIPES (VAR.330823-332823) (03) - TRANSMISSION

1

87541745

OIL COOLER

1шт.

2

15896214

NUT,M6, Cl 8

4шт.

3

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

4

5143837

HYDRAULIC HOSE,13.00 mm ID

L=340mm

1шт.

5

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

2шт.

6

87530829

RIGID TUBE,14 mm OD x 688.4, 293.1 mm L

, Serial Range: -C6079

1шт.

6

87530762

RIGID TUBE,14 mm OD x 748.4, 293.1 mm L

, Start Serial: D6079

1шт.

7

87530834

RIGID TUBE,14 mm OD x 759.6, 301.1 mm L

, Serial Range: -C6079

1шт.

7

87530817

RIGID TUBE,14 mm OD x 819.6, 301.1 mm L

, Start Serial: D6079

1шт.

8

5177864

RIGID TUBE

1шт.

9

5177868

RIGID TUBE

1шт.

10

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2шт.

11

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

4шт.

12

87739783

SUPPORT

2шт.

13

87739785

FILTER ASSY

1шт.

Mega Flow Pump (62 l/min) and Oil Cooler, VAR.330823

1шт.

13

87739790

FILTER ASSY

1шт.

Mega Flow Pump (62 l/min) and Oil Cooler for Dust Ejector, VAR.332823

1шт.
