(1.27.3/05[03]) - 2WD TRACTION SELECTION WITH 32X16 HYDR. TRANSMISSION - ACCUMULATOR AND PIPES (VAR.336401)

Запчасти Case IH FARMALL 65C (1.27.3/05[03]) - 2WD TRACTION SELECTION WITH 32X16 HYDR. TRANSMISSION - ACCUMULATOR AND PIPES (VAR.336401) (03) - TRANSMISSION

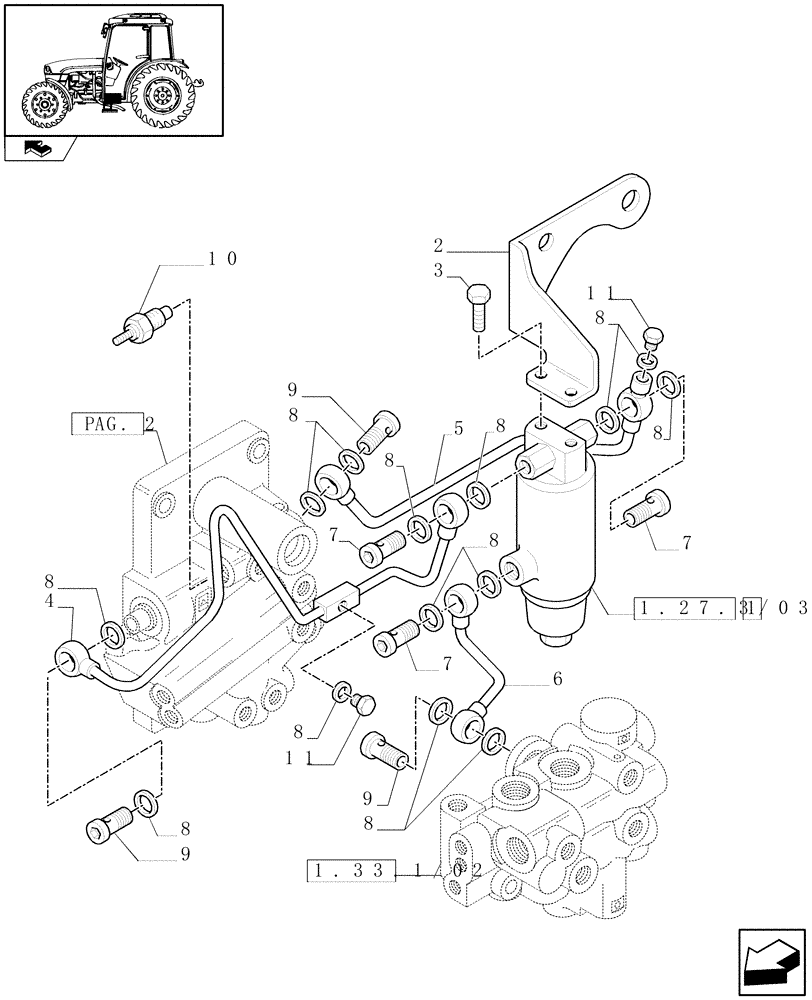

Схема запчастей Case IH FARMALL 65C - (1.27.3/05[03]) - 2WD TRACTION SELECTION WITH 32X16 HYDR. TRANSMISSION - ACCUMULATOR AND PIPES (VAR.336401) (03) - TRANSMISSION
10
8
9
8
8
p
8
8
g
11
1.33.1/02
8
3
a
7
8
8
2
8
7
.
4
5
1
6
7
9
2
9
11
8
1.27.3/03a
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87622906

ACCUMULATOR

1шт.

2

5187886

BRACKET

1шт.

3

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

4

5193220

RIGID TUBE

1шт.

5

5191298

RIGID TUBE

1шт.

6

5191273

RIGID TUBE

1шт.

7

5181983

HYD CONNECTOR,M10 x 1 27mm L

M10 x 1 x 21

2шт.

8

10260960

SEALING WASHER,M10.2 x 14 x 1.5

1шт.

9

5176180

BANJO BOLT,M10 x 1 x 17.5mm

4шт.

10

82028133

SENSOR,3/8"-18

Transm. Temp.

1шт.
