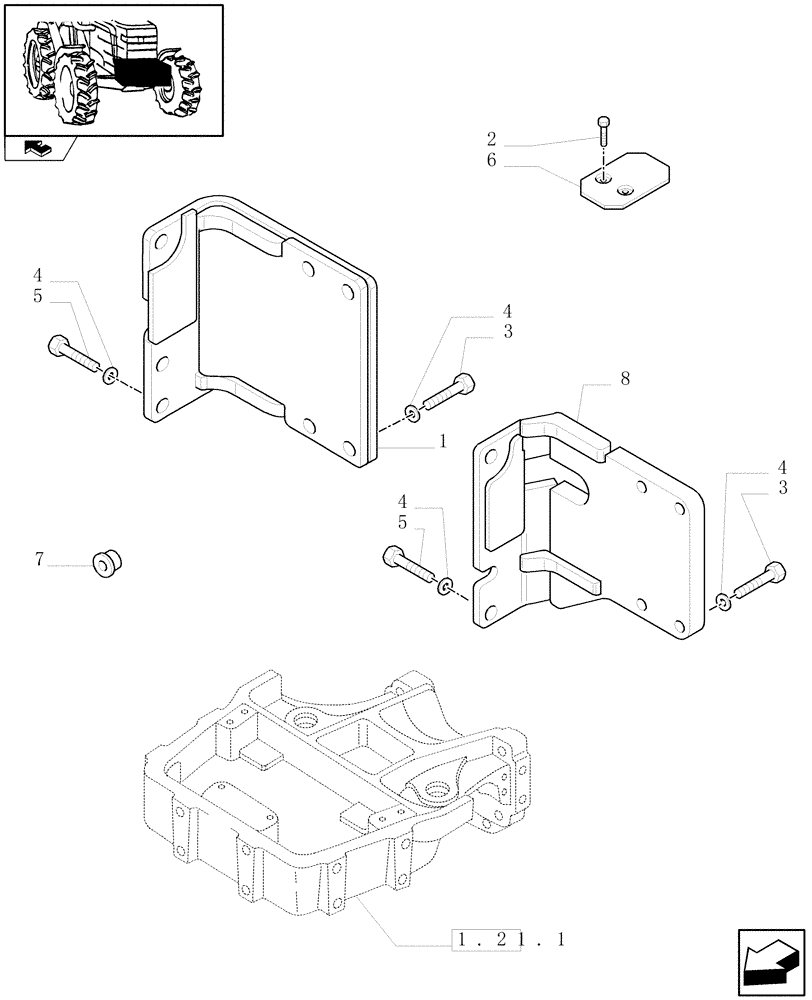

Запчасти Case IH FARMALL 65C (1.21.1/01) - FRONT LOADER BRACKETS - BRACKETS (VAR.331489-332489) (03) - TRANSMISSION

1

87448488

BRACKET

RH

1шт.

Bracket For ISO Front Loader, VAR.332489

1шт.

1

87448487

BRACKET

LH

1шт.

Bracket For ISO Front Loader, VAR.332489

1шт.

2

82015433

HEX SOC SCREW,FLAT, M10 x 1.5 x 25mm, Cl 10.9

4шт.

3

11124934

BOLT,Hex, M20 x 60, 10.9, Full Thd

8шт.

4

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

D=20

8шт.

5

11121334

BOLT,Hex, M20 x 35, 10.9, Full Thd

2шт.

6

87572509

SPACER

2шт.

7

5171790

PLUG,18mm, Black

18 x 12 x 24

8шт.

8

87472712

BRACKET

RH

1шт.

Bracket For NA Front Loader, VAR.331489

1шт.

8

87472621

BRACKET

LH

1шт.

Bracket For NA Front Loader, VAR.331489

1шт.
