Запчасти Case IH FARMALL 65C (1.21.1) - SUPPORT (03) - TRANSMISSION

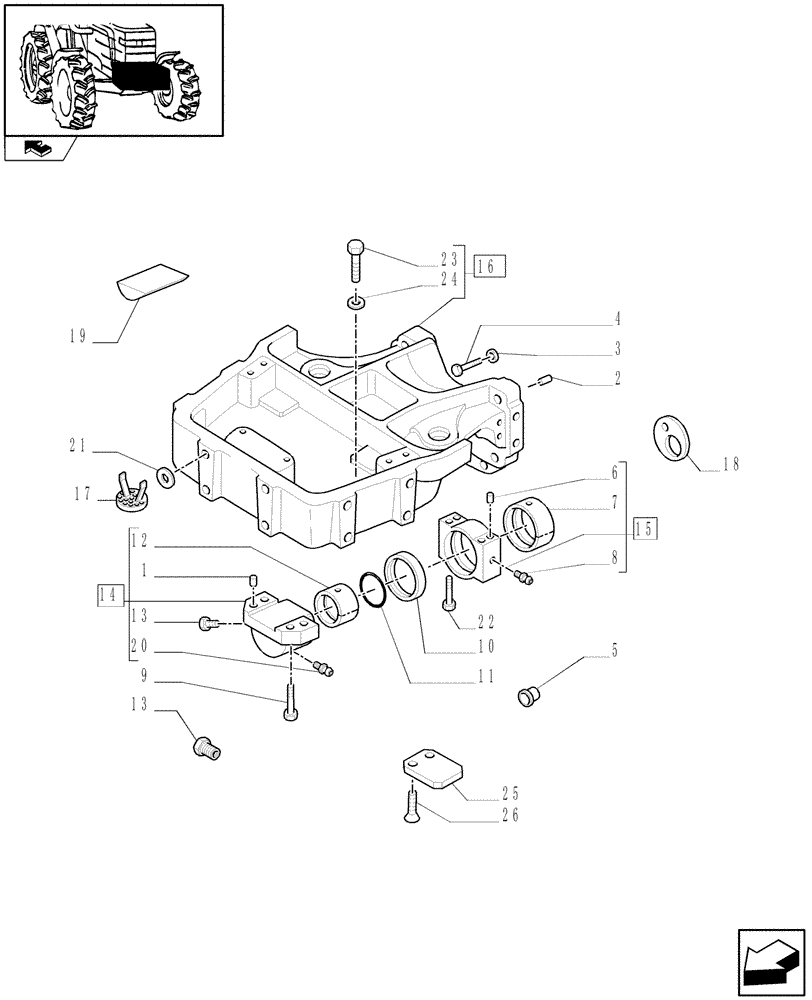

Схема запчастей Case IH FARMALL 65C - (1.21.1) - SUPPORT (03) - TRANSMISSION
22
26
11
21
2
17
3
7
9
20
10
24
4
12
13
23
13
15
19
25
14
1
18
16
5
home
8
6

Артикул

Название

Примечание

Количество

1

10837710

DOWEL,M10 x 25

2шт.

2

4668595

DOWEL,18mm OD x 22mm L

2шт.

3

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

20 x 38 x 5.2

4шт.

4

15989534

SCREW,Hex, M20 x 1.5 x 120mm

M20 x 1.5 x 120

2шт.

4

15989734

BOLT,Hex, M20 x 1.5 x 130mm, Cl 10.9

2шт.

5

5171790

PLUG,18mm, Black

18 x 12 x 24

1шт.

6

10837810

DOWEL,M12 x 30.00mm

D=12

2шт.

7

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

8

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

45°

1шт.

9

14272031

BOLT,Hex, M18 x 1.5 x 65mm

M18 x 1.5 x 65

2шт.

10

5188609

SEALING RING,99.04mm ID x 115mm OD x 7.5mm Thk

99 x 115 x 7.5

2шт.

11

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

12

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

52 x 57 x 42

1шт.

13

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

14

5140452

SUPPORT

1шт.

15

47131328

SUPPORT

1шт.

16

87550876

SUPPORT

ASSY, 4WD

1шт.

17

5120218

GRILLE

2шт.

18

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.

19

47125763

PLUG

1шт.

20

13407211

LUBE NIPPLE,M10 x 1

1шт.

21

47128135

SHIM,21mm ID x 40mm OD x 1.8mm Thk, Yellow

Yellow

1шт.

21

47128136

SHIM,21mm ID x 40mm OD x 2.0mm Thk, Red

Red

1шт.

21

47128137

SHIM,21mm ID x 40mm OD x 2.2mm Thk, Green

Green

1шт.

21

47128138

SHIM,21mm ID x 40mm OD x 2.4mm Thk, Blue

Blue

1шт.

21

47136468

SHIM,21mm ID x 40mm OD x 1.6mm Thk, Black

Black

1шт.

22

14272934

BOLT,Hex, M18 x 1.5 x 140mm, Cl 10.9

2шт.

23

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

24

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

25

87572509

SPACER

2шт.

Front axle reduction oscillation plates, VAR.331497

1шт.

26

82015433

HEX SOC SCREW,FLAT, M10 x 1.5 x 25mm, Cl 10.9

4шт.

Front axle reduction oscillation plates, VAR.331497

1шт.

Выбрано товаров: 33
