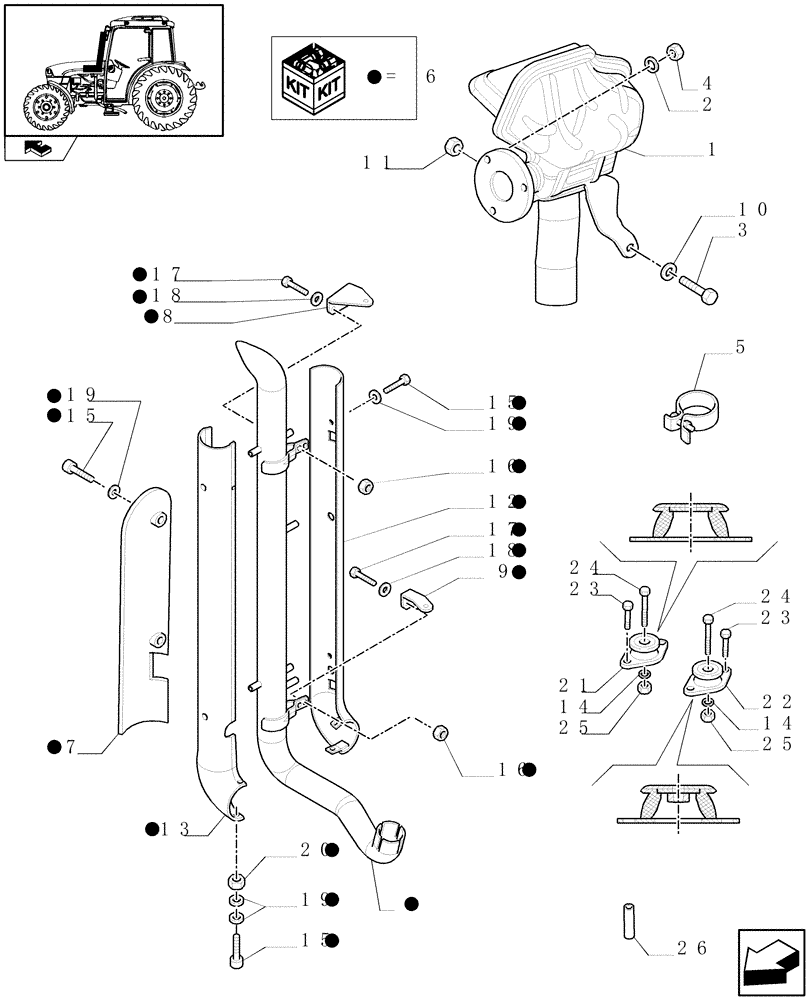

Запчасти Case IH FARMALL 65C (1.15.1/04) - "A" PILLAR TYPE VERTICAL EXHAUST WITH GUARD SHIELD FOR FRONT LOADER READY (VAR.333466) (02) - ENGINE EQUIPMENT

1

87392493

MUFFLER

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

3

13517124

STUD,M8 x 12mm x 28mm, Cl 8.8

1шт.

4

5118186

FLANGE NUT

M8x1.5

3шт.

5

87667303

HOSE CLAMP,58mm - 58.5mm

1шт.

6

87474935

MUFFLER

ASSY

1шт.

7

87564300

SHIELD

1шт.

8

87310289

ANGLE BAR

1шт.

9

47057692

ANGLE BAR

1шт.

10

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

11

16100815

NUT,M8 x 1.25, Cl 8

1шт.

12

87474934

GUARD

1шт.

13

87474932

GUARD

1шт.

14

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

6шт.

15

47057252

HEX SOC SCREW

M6x10

8шт.

16

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

17

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

18

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

19

17094714

LOCK WASHER,M6 x 13

10шт.

20

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

21

47056714

SILENTBLOC

2шт.

22

47056715

SILENTBLOC

W/Nut

2шт.

23

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

4шт.

24

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

2шт.

25

15896211

NUT,M6, Cl 8

6шт.

26

87486852

SPACER

2шт.
