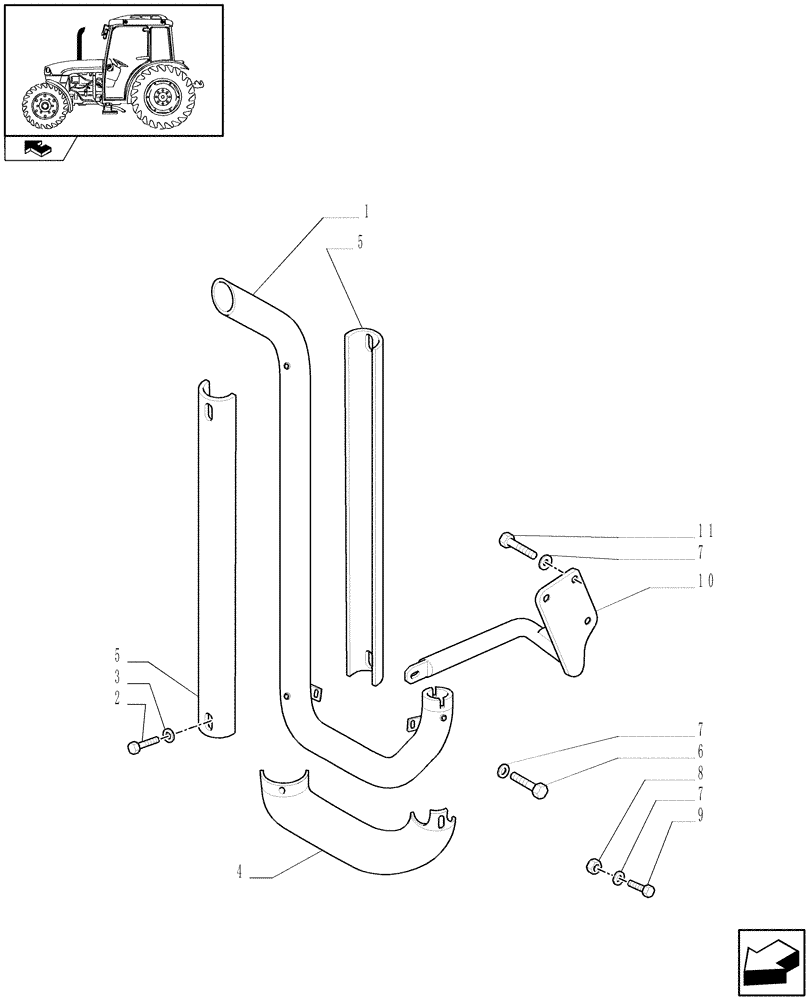

Запчасти Case IH FARMALL 65C (1.15.1/01) - VERTICAL EXHAUST W/GUARD SHIELD - GUARD (VAR.330134-332134) (02) - ENGINE EQUIPMENT

1

47136057

EXHAUST SYSTEM PIPE

Incl. 2-5

1шт.

2

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

5шт.

3

17094714

LOCK WASHER,M6 x 13

5шт.

4

47135952

GUARD

1шт.

5

47133695

GUARD

2шт.

6

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

8

16100814

NUT,M8, Cl 8, DAC

1шт.

9

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

10

87620861

BRACKET

1шт.

11

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.
