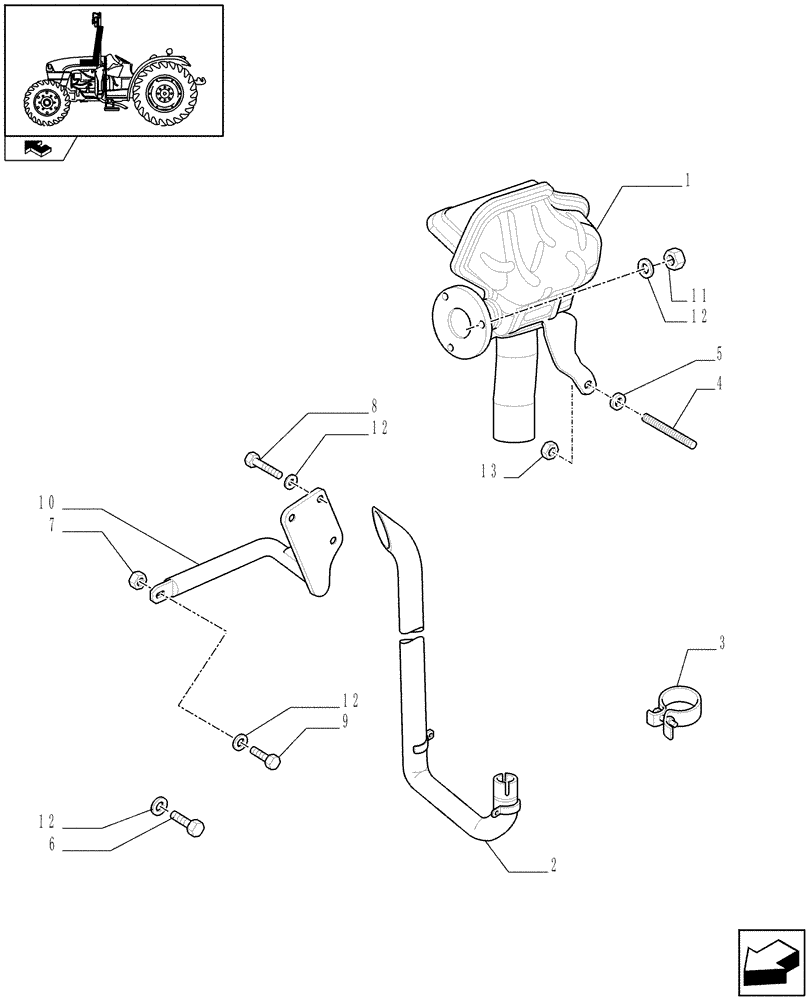

Запчасти Case IH FARMALL 65C (1.15.1) - SILENCER (MUFFLER) (02) - ENGINE EQUIPMENT

1

87392493

MUFFLER

1шт.

2

47135796

EXTENSION

1шт.

3

87667303

HOSE CLAMP,58mm - 58.5mm

1шт.

4

13516920

STUD,M8 x 12mm x 22mm, Cl 8.8

M8 x 12 x 22

1шт.

5

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

6

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

7

16100814

NUT,M8, Cl 8, DAC

1шт.

8

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

9

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

10

87620861

BRACKET

1шт.

11

5118186

FLANGE NUT

M8 x 1.25

3шт.

12

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

9шт.

13

16100815

NUT,M8 x 1.25, Cl 8

1шт.
