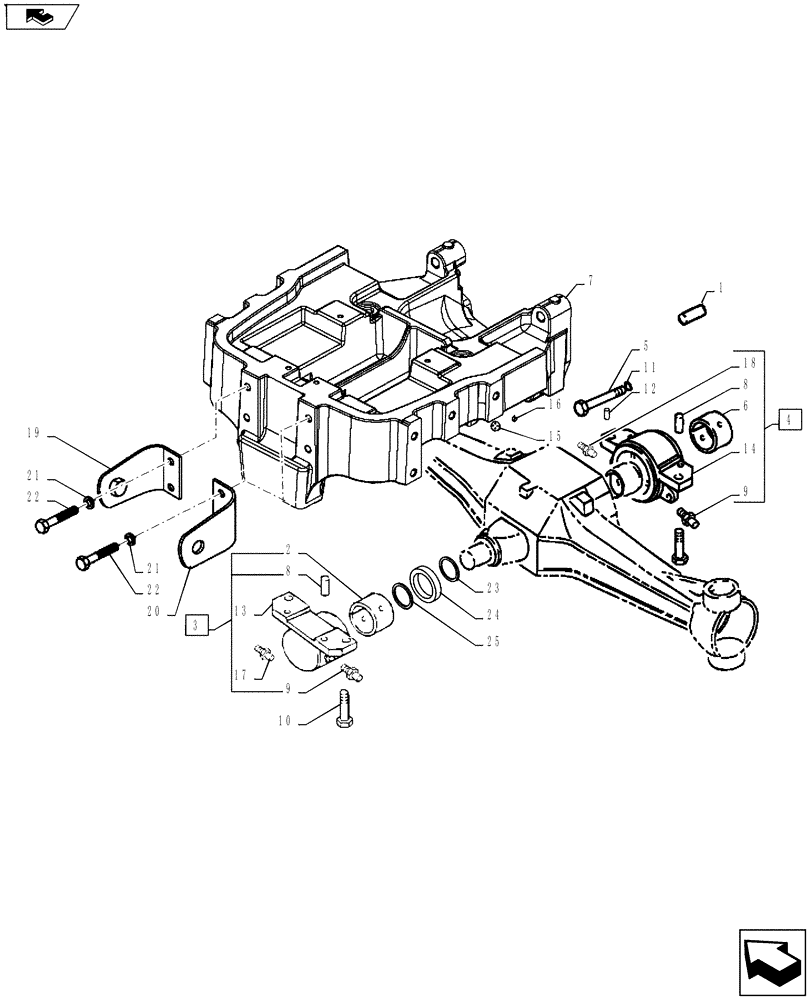

Запчасти Case IH FARMALL 65A (25.100.02) - FRONT AXLE SUPPORT - 4WD (25) - FRONT AXLE SYSTEM

1

4668595

DOWEL,18mm OD x 22mm L

2шт.

2

84383501

Bushing, Front

1шт.

3

84489817

HINGE

Axle Front Hinge Assy., Includes Ref. 2, 8-9, 13, 17

1шт.

4

47707508

AXLE

Hinge Rear Hinge Assy, Incl 6, 8, 9, 14, 18

1шт.

5

5125208

BOLT,Hex, M18 x 1.5 x 75mm

Cap, M18 x 1.5 x 75

8шт.

6

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

Rear

1шт.

7

84256417

SUPPORT

Axle

1шт.

8

10837710

DOWEL,M10 x 25

4шт.

9

13407211

LUBE NIPPLE,M10 x 1

1шт.

10

84150658

PLUG

M20 x 1.5 x 110

4шт.

11

11191679

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

8шт.

12

590353

PLUG,15mm OD x 10mm High, Plastic

M20 x 1.5 x 65

12шт.

13

84341231

Axle Front Hinge Assy.

1шт.

14

47707506

Axle Front, Hinge Rear Side Assy.

1шт.

15

87548118

PLUG

1шт.

16

87548119

CLIP

1шт.

17

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

18

84351730

FITTING,M10 x 1

M10 x 1

1шт.

19

84319721

BRACKET

Guard, RH

1шт.

20

84319719

BRACKET

Guard, LH

1шт.

21

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

4шт.

22

10571579

LOCK WASHER,M6

4шт.

23

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.

24

5140455

SEALING RING

1шт.

25

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.
