(23.101.03) - FRONT AXLE DROPBOX - 4WD

Запчасти Case IH FARMALL 65A (23.101.03) - FRONT AXLE DROPBOX - 4WD (23) - FOUR WHEEL DRIVE SYSTEM

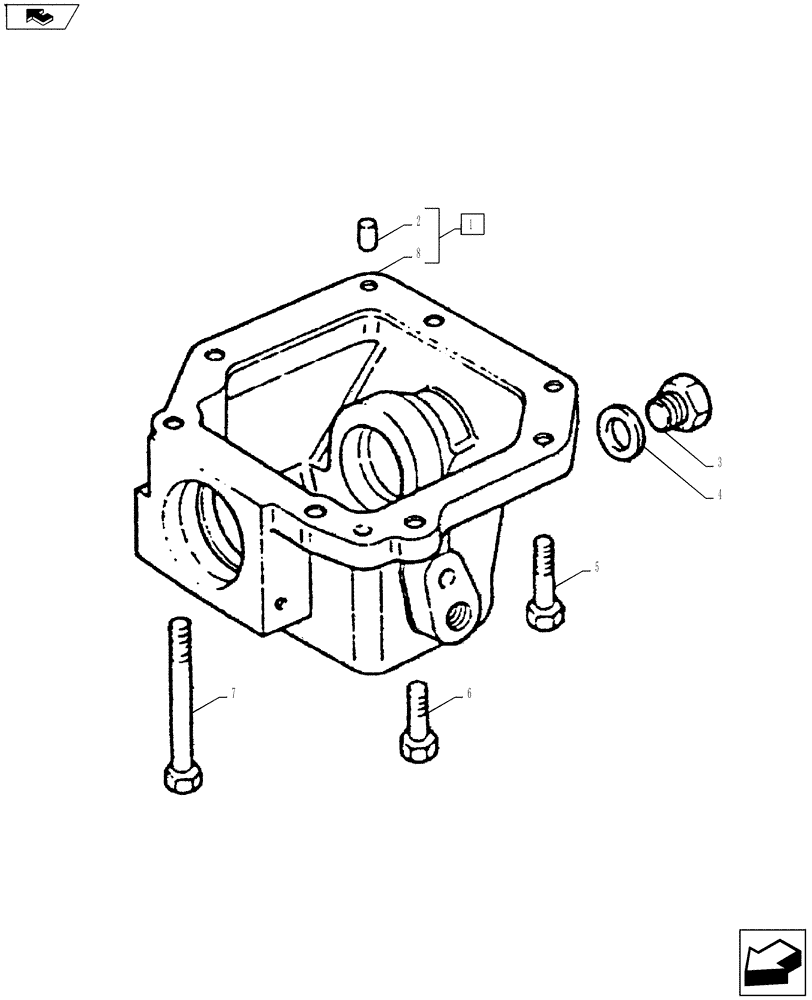

Схема запчастей Case IH FARMALL 65A - (23.101.03) - FRONT AXLE DROPBOX - 4WD (23) - FOUR WHEEL DRIVE SYSTEM
home
5
6
7
1
2
3
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5124336

HOUSING

Includes Ref. 2, 8

1шт.

2

10839710

DOWEL,M10 x 15.00mm

Pin-Locating

2шт.

3

14326540

MAGNETIC PLUG

PLUG, MAGNETIC

1шт.

4

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

5

15540521

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

6

15541624

SCREW,Hex, M12 x 1.25 x 100mm, Cl 8.8

1шт.

7

15540421

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

8

5124335

HOUSING

1шт.
