(23.101.02) - FRONT AXLE DRIVESHAFT - SHIELD - 4WD

Запчасти Case IH FARMALL 65A (23.101.02) - FRONT AXLE DRIVESHAFT - SHIELD - 4WD (23) - FOUR WHEEL DRIVE SYSTEM

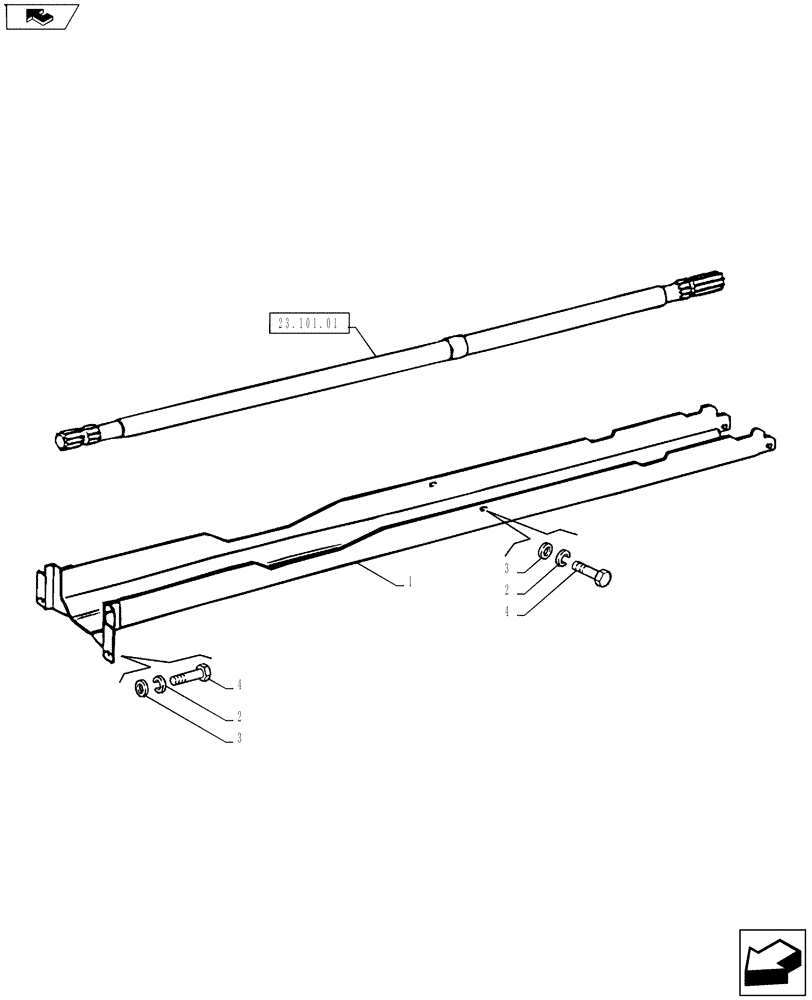

Схема запчастей Case IH FARMALL 65A - (23.101.02) - FRONT AXLE DRIVESHAFT - SHIELD - 4WD (23) - FOUR WHEEL DRIVE SYSTEM
2
4
1
2
3
23.101.01
4
home
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87720539

SHIELD

1шт.

2

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

3

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

6шт.

4

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

Alternate Part 16043124

6шт.
