(23.101.01) - FRONT AXLE DRIVESHAFT - 4WD

Запчасти Case IH FARMALL 65A (23.101.01) - FRONT AXLE DRIVESHAFT - 4WD (23) - FOUR WHEEL DRIVE SYSTEM

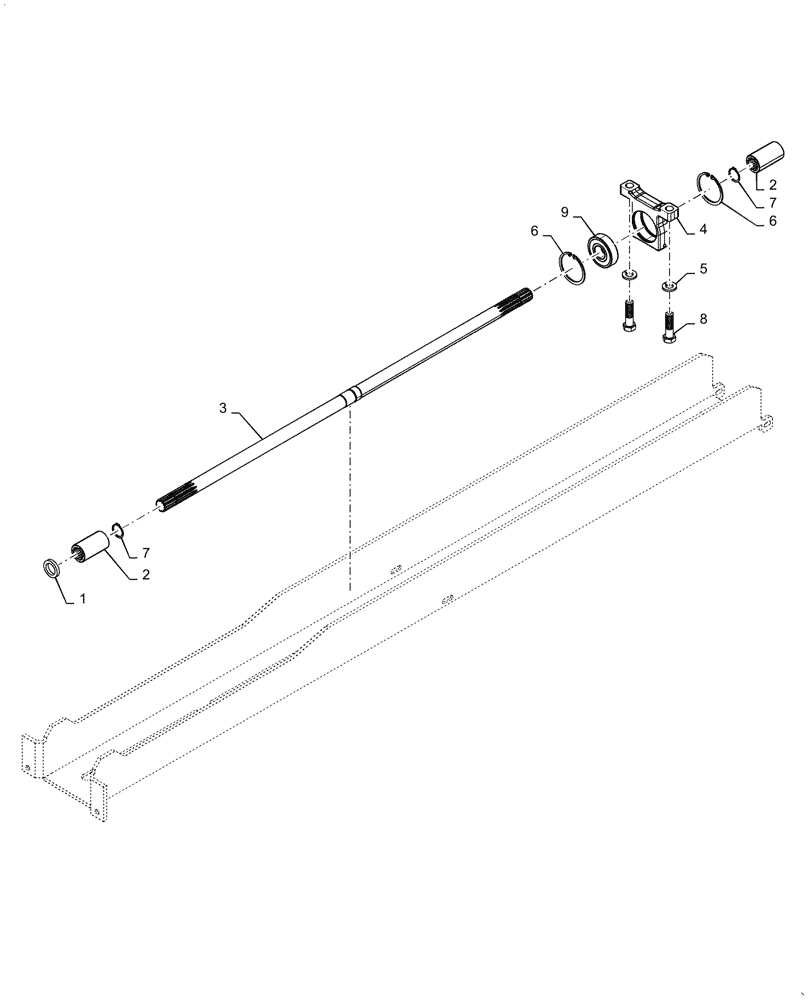

Схема запчастей Case IH FARMALL 65A - (23.101.01) - FRONT AXLE DRIVESHAFT - 4WD (23) - FOUR WHEEL DRIVE SYSTEM
5
6
4
1
7
2
6
8
2
9
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4997301

SHIM,29mm ID x 40mm OD x 2.2mm Thk

1шт.

2

5199243

SPLINED COUPLING

2шт.

3

48038952

Propeller

TRANSMISSION

1шт.

4

5124328

SUPPORT

1шт.

5

10517279

LOCK WASHER,16.2mm ID x 30.6mm OD x 4.2mm Thk

M16

2шт.

6

11061576

SNAP RING,M72, Int

2шт.

7

11067776

SNAP RING,M29, Ext

2шт.

8

11391521

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

2шт.

9

28996680

BALL BEARING,30mm ID x 72mm OD x 19mm W

1шт.
