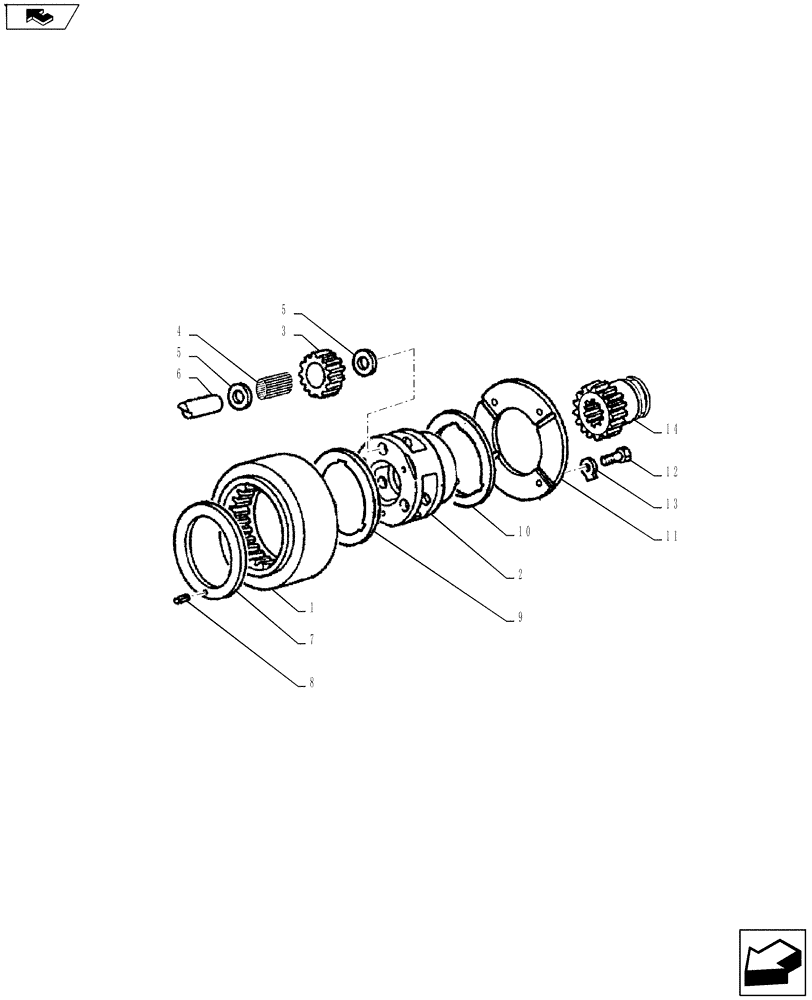

Запчасти Case IH FARMALL 65A (21.140.03) - HIGH - LOW RANGE GEARS (21) - TRANSMISSION

1

579294

GEAR

Sun, Planetary Splitter

1шт.

2

4986426

SUPPORT

Planet Gears

1шт.

3

579295

DRIVEN GEAR

Planet-Splitter

3шт.

4

28044400

NEEDLE ROLLER

54шт.

5

567880

THRUST WASHER,14.5mm ID x 30.5mm OD x 1.5mm Thk

Planet Gear

6шт.

6

567875

PIN,14.4mm OD x 43mm L

D14 x 43

3шт.

7

567882

THRUST WASHER,99mm ID x 133.97mm OD x 3mm Thk

Plate, Inner Planet Gear Support

1шт.

8

14165470

LOCK PIN,M5 x 10, Slotted

1шт.

9

4986427

THRUST WASHER,82mm ID x 115mm OD x 1.5mm Thk

Inner Planet Gear

1шт.

10

567881

THRUST WASHER,93mm ID x 115mm OD x 1.5mm Thk

Outer Planet Gear

1шт.

11

567883

THRUST PLATE

Outer Gear Support

1шт.

12

11354021

BOLT,Hex, M12 x 1.5 x 60mm, Cl 8.8

Cap, Hex., M12 x 1.5 x 60

4шт.

13

10053710

WASHER,12mm ID x 28mm OD x 0.8mm Thk

4шт.

14

5109000

GEAR

Sliding Splitter Control

1шт.
