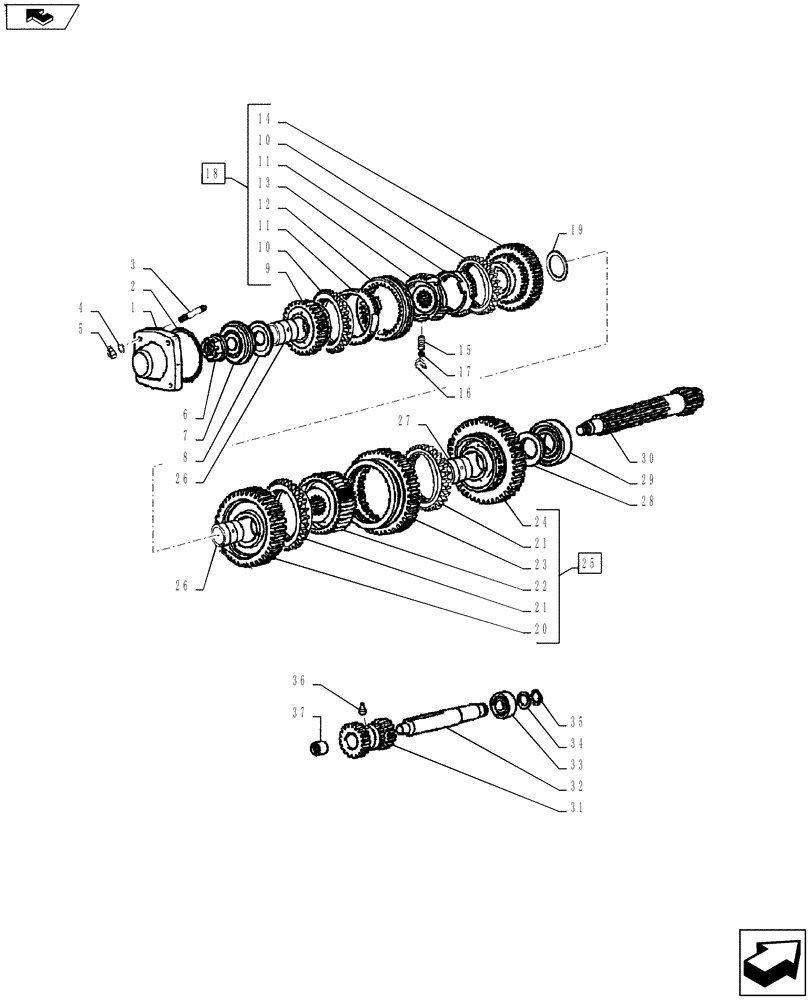

Запчасти Case IH FARMALL 65A (21.140.02[02]) - TRANSMISSION GEARS AND SHAFT (PARTIAL SYNCHROMESH) (21) - TRANSMISSION

1

82824375

BEARING COVER

Bearing Driven Shaft

1шт.

2

14465682

GASKET

1шт.

3

13517010

STUD

M8 x 12 x Stem 25

4шт.

4

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

Helical Spr 8 C72 ZNM

1шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

6

5123112

RING NUT

1шт.

7

28995870

BALL BEARING,30mm ID x 72mm OD x 19mm W

D30 x 72 x 19

1шт.

8

593653

THRUST WASHER,30.1mm ID x 62mm OD x 5mm Thk

4th Gear

1шт.

9

9971114

GEAR

Driven, 4th, 32T

1шт.

10

9971133

GEAR

Clutch Body Ring, 36T

2шт.

11

9971120

GEAR

Syncho Ring

2шт.

12

9971116

GEAR

Sliding Sleeve Enagage, 24T

1шт.

13

9971134

GEAR

Hub Synchro, 33 Internal Teeth

1шт.

14

9971113

GEAR

Driven, 3rd, 36T

1шт.

15

9971117

SPRING

3шт.

16

9971118

CUP

Poppel

3шт.

17

9971119

BALL

3шт.

18

82824102

GEAR

Assy., 3rd & 4th Driven Gears- Synchro (Consists of Items 9 - 17) Alternate Part (828224118)

1шт.

19

598186

THRUST WASHER,40.1mm ID x 62mm OD x 5.5mm Thk

1шт.

20

9971107

GEAR

Driven, 2nd, 41T

1шт.

21

9971111

GEAR

Clutch Body Ring, 36T

2шт.

22

9971109

GEAR

Synchro Hub, 27T

1шт.

23

9971110

GEAR

Sliding Sleeve, 46T

1шт.

24

9971108

GEAR

Driven, 1st, 46T

1шт.

25

82824660

GEAR

Kit, 1st & 2nd Gear (Consists of Item No. 19 - 24)

1шт.

26

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

Gear, For 2nd & 4th Gear

3шт.

27

82824663

BUSHING,39.2mm ID x 49.95mm OD x 34mm L

Gear, For 1st Gear

1шт.

28

598188

THRUST WASHER,40.1mm ID x 62mm OD x 7.5mm Thk

1st Gear

1шт.

29

26798310

BALL BEARING

1шт.

30

5102795

DRIVEN SHAFT

Gear

1шт.

31

598185

IDLER GEAR

Driven Reverse

1шт.

32

598174

SHAFT

Reverse Gear

1шт.

33

20715580

BALL BEARING,25 mm ID x 52 mm OD x 15 mm

1шт.

34

596033

THRUST WASHER

1шт.

35

11067376

SNAP RING,M25, Ext

M25, Ext

1шт.

36

596032

DOWEL

1шт.

37

596031

NEEDLE BEARING,Needle, 20mm ID x 16mm OD x 16mm W

Bearing Roller, Alternate Part 82824507

1шт.
