Запчасти Case IH FARMALL 65A (21.140.02[01]) - TRANSMISSION GEARS AND SHAFTS (21) - TRANSMISSION

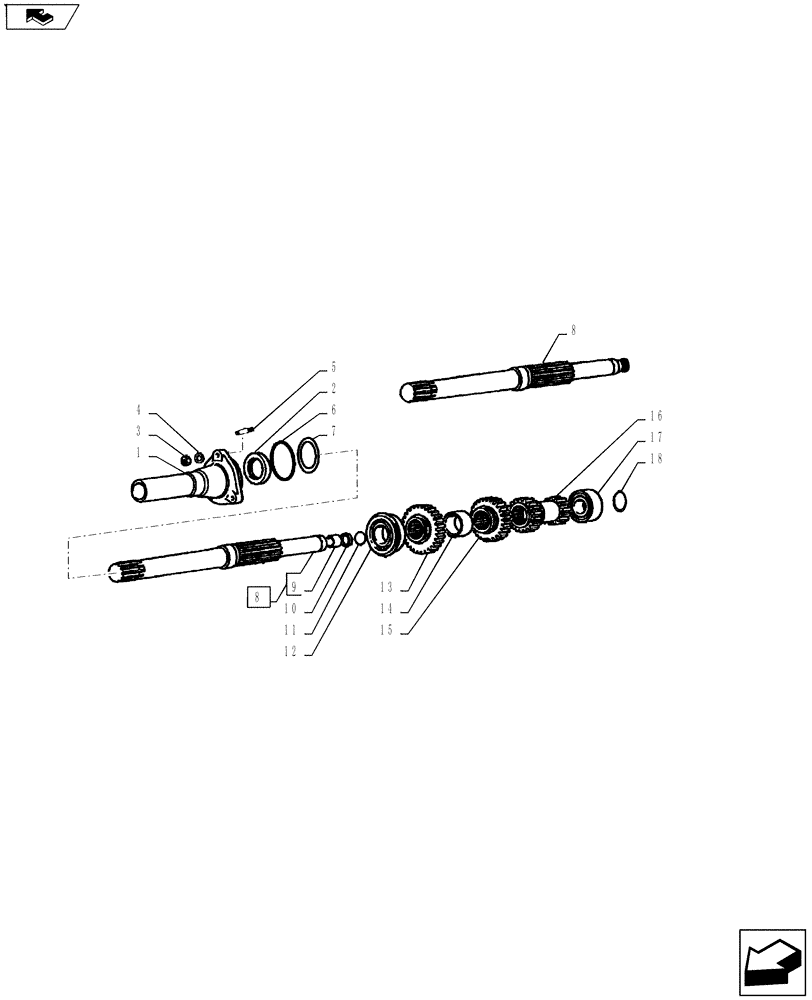

Схема запчастей Case IH FARMALL 65A - (21.140.02[01]) - TRANSMISSION GEARS AND SHAFTS (21) - TRANSMISSION
9
2
11
10
12
5
17
14
16
8
3
7
18
home
8
15
6
4
1
13

Артикул

Название

Примечание

Количество

1

82824606

BEARING COVER

Bearing Drive Shaft

1шт.

2

5085500

OIL SEAL

Oil Transmisssion Cover

1шт.

3

13517010

STUD

M8 x 12 x Stem 25

3шт.

4

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

Helical Spr 8 C72 ZNM

6шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

6

14461282

GASKET

1шт.

7

82824593

SHIM,60mm ID x 84.5mm OD x 0.3mm Thk

Shim-Transmission

1шт.

8

82824429

SHAFT

Input Dual Clutch, Includes Ref. 9

1шт.

9

82824334

BUSHING

Alternate Part 4950081

1шт.

10

4985295

SEAL

Oil

1шт.

11

11069076

SNAP RING,M45, Ext

1шт.

12

28996330

BALL BEARING,45mm ID x 85mm OD x 19mm W

D = 45 x 85 x 19

1шт.

13

5109833

DRIVING GEAR

4th

1шт.

14

593656

SPACER

1шт.

15

5109834

DRIVING GEAR

3rd & Reverse 27Teeth

1шт.

16

82824408

GEAR

Drive 1st (16 Teeth) & 2nd (21 Teeth)

1шт.

17

5125824

ROLLER BEARING,35mm ID x 72mm OD x 23mm W

D = 35 x 72 x 23

1шт.

18

11068375

LOCKING RING

1шт.

Выбрано товаров: 18
