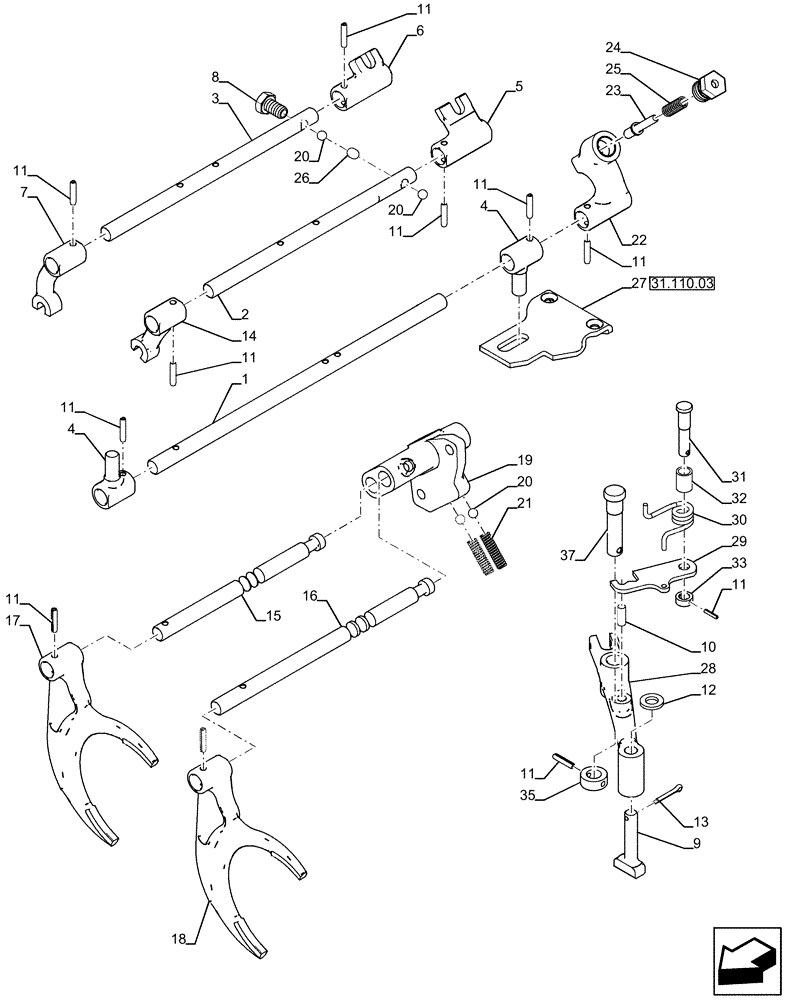

Запчасти Case IH FARMALL 65A (21.140.01) - GEARSHIFT FORKS (21) - TRANSMISSION

1

82825397

SHAFT

Reverse

1шт.

2

82825396

BALL CUP

3rd & 4th

1шт.

3

82825395

SHIFT RAIL

1st & 2nd

1шт.

4

82825666

PIN

Reverse Engagement Secondary

2шт.

5

87337968

SLIPPER

3rd & 4th Gear

1шт.

6

87337967

GATE ASSY

1st & 2nd Gear

1шт.

7

82825400

SHIFTER FORK

Intermediate 1st & 2nd

1шт.

8

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

Reverse Gear, Includes Ref. 10

1шт.

9

87357799

LEVER,12mm OD x 65mm L

Pad Reverse

1шт.

10

593742

DOWEL,8mm OD x 16mm L

1шт.

11

14166170

ROLL PIN

6шт.

12

10520001

WASHER,12.2mm ID x 22mm OD x 3mm Thk

2шт.

13

10796901

COTTER PIN,M4 x 22

1шт.

14

82825401

SHIFTER FORK

Intermediate 3rd & 4th

1шт.

15

82825398

SHIFT RAIL

Intermediate 1st & 2nd

1шт.

16

82825399

SHIFT RAIL

Intermediate 3rd & 4th

1шт.

17

82825409

SHIFTER FORK

1st & 2nd

1шт.

18

82825410

SHIFTER FORK

3rd & 4th

1шт.

19

82825413

SUPPORT

1, 2, 3, 4, Gear Engagement

1шт.

20

20063390

BALL,8.73mm OD

2шт.

21

588733

SPRING

2шт.

22

87337969

GATE ASSY

Reverse Engagement

1шт.

23

82825494

PIN,7mm OD x 53mm L

Main Lever Position

1шт.

24

82825496

BOLT,M20 x 1.5 x 25mm, Gr 5.8

Main Lever Position

1шт.

25

82825495

SPRING

Main Lever Position

1шт.

26

82825402

PIN,9mm OD x 12.35mm L

Interlock

1шт.

27

87323732

BRACKET

Lock, Reverse & PTO

2шт.

28

82825654

SHIFTER FORK

2шт.

29

82826874

BRACKET

1шт.

30

593679

SPRING

1шт.

31

593694

PIN,11mm OD x 55mm L

1шт.

32

593743

SPACER

1шт.

33

576677

RING

1шт.

34

87303233

DOWEL

Pin Locating - Reverse Lever

1шт.

35

593520

SEAL

1шт.

36

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

Not Illustrated

1шт.

37

593677

PIN,15mm OD x 71mm L

Reverse Control Lever

1шт.
