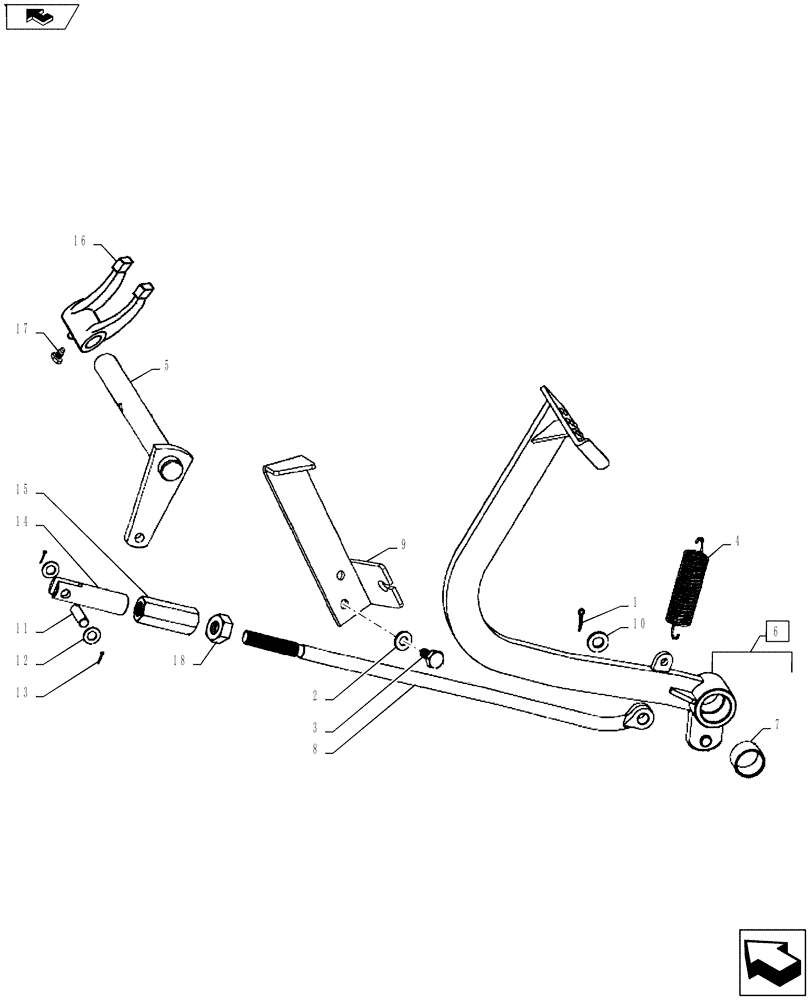

Запчасти Case IH FARMALL 65A (18.100.01[02]) - CLUTCH PEDAL AND LINKAGE (18) - CLUTCH

1

10796404

COTTER PIN,M3.2 x 18

1шт.

2

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

3

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

4

86530740

SPRING

DO = 25, DW = 3.4, L = 104.8

1шт.

5

84131461

SHAFT

Fork Lever

1шт.

6

87569985

PEDAL

Clutch, Includes Ref. 7

1шт.

7

82824387

BUSHING,28mm ID x 32.09mm OD x 20.25mm L

1шт.

8

87697139

TIE-ROD

Master Clutch Release

1шт.

9

87665491

BRACKET

Clutch Pedal

1шт.

10

10520004

WASHER,12.2mm ID x 22mm OD x 3mm Thk

1шт.

11

596420

PIN,10mm OD x 34mm L

Fork

1шт.

12

12638604

LOCK WASHER

10.5 x 18 x 2

1шт.

13

10734404

CLIP

2 x 22

2шт.

14

87697703

CLEVIS

1шт.

15

87697142

SLEEVE,11.18mm OD x 22.35mm L

1шт.

16

5124803

SHIFTER FORK

1шт.

17

4968813

BOLT,Hex, M16 x 1.5 x 32mm

M16 x 1.5 x 32

1шт.

18

10791314

THIN NUT,Hex, M14 x 1.5, Cl 04 DAC

M14 x 1.5

1шт.
