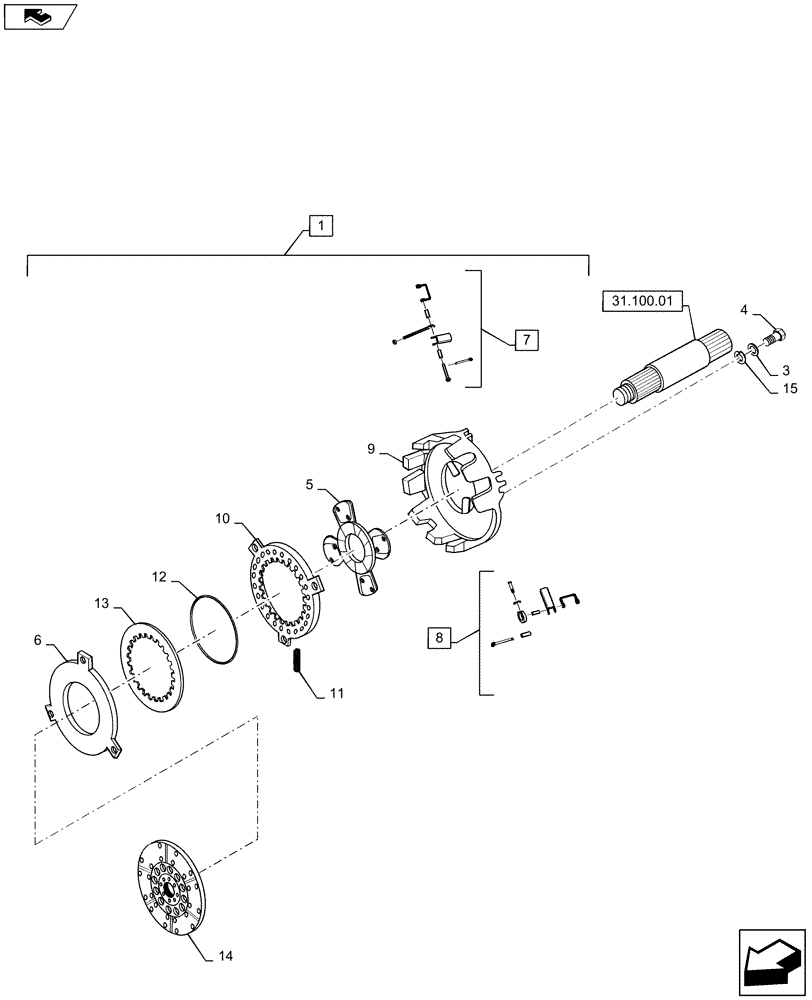

Запчасти Case IH FARMALL 65A (18.100.01[01]) - CLUTCH ASSEMBLY (18) - CLUTCH

1

87386516

CLUTCH,330mm OD

Assy. Includes: Ref. 2, 5-14

1шт.

1

87386516R

REMAN-CLUTCH PLATE

Reman for New PN 87386516

1шт.

1

87386516C

CORE-CLUTCH PLATE

Return Number

1шт.

2

87386517

CLUTCH PLATE

Main, Driven plate 11 (Safety Clutch 75 HP)

1шт.

Non Illustrated

1шт.

2

87386517R

REMAN-CLUTCH PLATE

Remanufactured Clutch Plate; Driven Plate 11 ( Safety Clutch 75 HP)

1шт.

Non Illustrated

1шт.

2

87386517C

CORE-CLUTCH PLATE

Return Number, Driven Plate 11 (Safety Clutch 75 HP)

1шт.

Non Illustrated

1шт.

3

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

6шт.

4

16044121

BOLT,Hex, M8 x 45mm, Cl 8.8

M8 x 45

6шт.

5

84537782

CLUTCH PLATE

Clutch, Main Driven Plate

1шт.

6

84537779

CLUTCH, PRESSURE PLA

Clutch, PTO Pressure Plate Sub Assy

1шт.

7

84537780

CLUTCH OVERHAUL KIT

Clutch, Rep Set PTO

1шт.

8

84537781

CLUTCH OVERHAUL KIT

Clutch, Rep Set Main

3шт.

9

84527858

CLUTCH

Cover, Clutch

1шт.

10

84527872

CLUTCH

Pressure Plate

1шт.

11

84527864

CLUTCH

Spring

1шт.

12

84527874

CLUTCH

Ring

1шт.

13

84527870

CLUTCH

Diaphragm Spring

1шт.

14

87371464

CLUTCH PLATE

PTO Disc

1шт.

15

84527868

CLUTCH

Clutch, retainer Plate

1шт.

Non Illustrated

1шт.

16

10571774

LOCK WASHER,8.1mm ID x 14.8mm OD x 2mm Thk

6шт.
